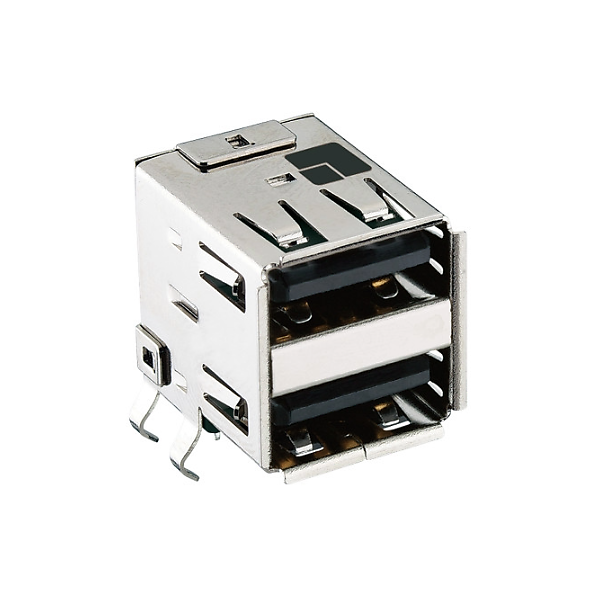

2410 05 Lumberg Dual Stack USB 2.0 Type A Socket (24109)

From: £0.625

Double Stack USB 2.0 chassis socket
x2 Type A sockets
90º PCB mounted
Front side ground tags
Black inserts

Part No.	Stock Qty	600+	1200+	2400+	4800+	Qty
2410 05 100pcs Tray	Standard delivery 15 - 17 working days *	£0.72	£0.68	£0.65	£0.625	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Environmental conditions

Temperature range: -40 °C/+85 °C

Materials

Insulating body: PBT GF, V-0 according to UL94

Contact spring: CuSn, gold-plated, tin-plated in solder area

Housing: Cu alloy/steel, tin-plated

Mechanical data

Mating cycles: 1500

Insertion force: ≤ 35 N

Withdrawal force: 10–35 N

Electrical data (at T_amb 20 °C)

Contact resistance: ≤ 30 mΩ

Rated current: 1 A

Rated voltage: 30 V AC

Rated impulse voltage: 500 V/60 s

Lumberg universal serial bus interfaces acc. to USB 2.0 and 3.0 specification for transmission rates of up to 480 Mbit/s and 5 gbit/s respectively and digital video interfaces acc. to IEEE 1394 for up to 800 Mbit/s, also known as FireWire or i.Link. For signal and low load currents up to 1 A.

2410 05 is a double USB 2.0 chassis socket type A, angular version, for printed circuit boards.
