| Part No. | Stock Qty | 1+ | 100+ | 500+ | 1000+ | Qty |
|---|---|---|---|---|---|---|
|
VPSJ-8-8-1-1
70 P/T |
4107 in stock | £0.82 | £0.69 | £0.55 | £0.44 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Contact Material: Phosphor Bronze
Contact Plating: Selective Gold plating
Shield Material: Ni plated Brass
Insulator: PBT Thermoplastic UL94V-0 Black
Insulation Resistance: 1000MΩ Min.
Withstanding Voltage:500V AC/Minute
Rated Current: 1.5A
Rated Voltage: 125V
Contact Resistance: 20mΩ
Operating Temperature: -40°C to +85°C
Durability: 600 cycles

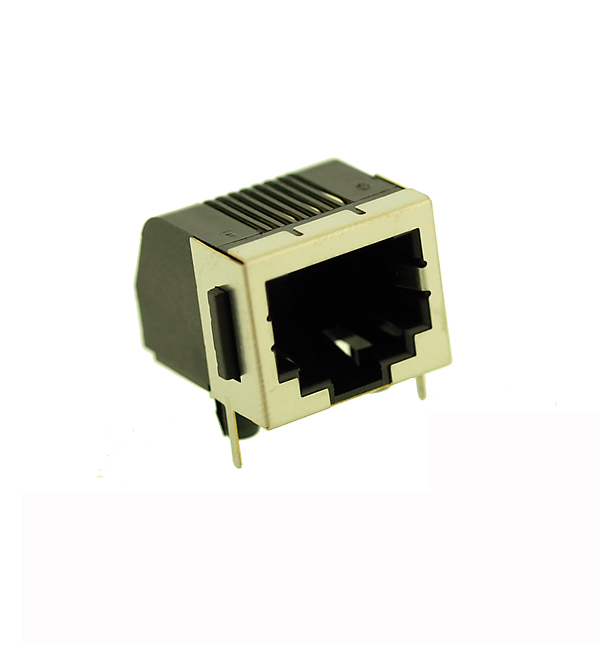

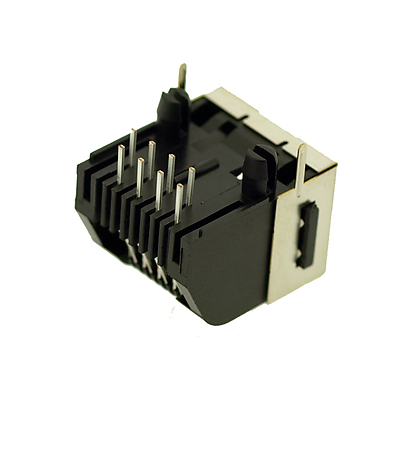

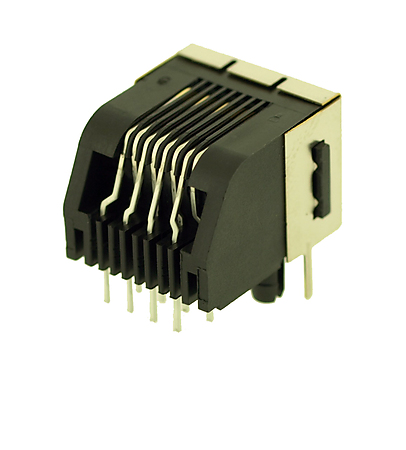

This Valcon tab down single port, PCB mount RJ45 Jack is part shielded with mounting ears. It has selective gold plated contacts, good for 600 mating cycles.
