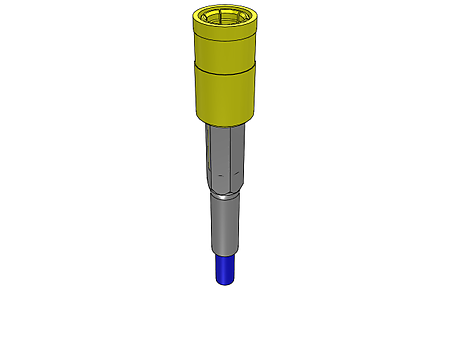

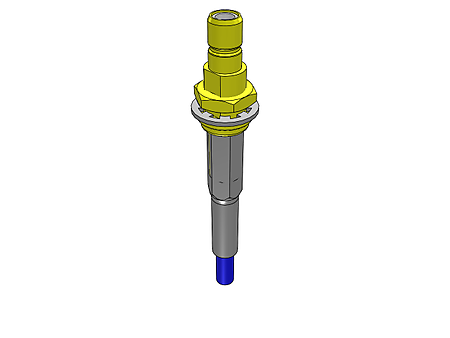

SMB5-CA - Samtec 50Ω SMB Jack or Plug, Cable Termination

SMB5-CA - Samtec 50Ω SMB Jack or Plug, Cable Termination (SMB5C)

From: £2.419

SMB cable component
50 ohm impedance
Straight or right-angle plug available on RG174 or RG316 cables
Straight jack available on RG178 or RG316 cables
Non-magnetic option available for medical and aerospace applications

Part No.	Stock Qty	Price Breaks				Qty
SMB5-P-C-H-RA-CA1 3D CAD	Standard delivery 6 - 8 working days *	1+: £7.10	10+: £6.90	25+: £6.54	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
SMB5-P-C-H-ST-CA1 3D CAD	6 in stock	1+: £5.12	25+: £4.98	50+: £4.72	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
SMB5-P-C-HN-RA-CA1 3D CAD	Standard delivery 3 - 5 working days *	1+: £5.68	10+: £5.52	25+: £5.23	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
SMB5-P-C-HN-ST-CA1 3D CAD	Standard delivery 3 - 5 working days *	1+: £5.82	10+: £5.66	25+: £5.36	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

Qty.	Unit Price	Ext. Price

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Shell Material: Brass

Contact Material: Brass (–J), Phosphor Bronze (–P–ST), BeCu (–P–RA)

Center Contact: Soldered

Outer Ferrule: Crimped

Insulator Material: PTFE

Impedance: 50Ω

Frequency Range: 0~4 GHz

V.S.W.R: 1.3 max (–ST), 1.5 max (–RA)

Working Voltage: 335 Vrms max

Dielectric Withstanding: 1000 Vrms min

Contact Resistance: Center Contact: 6mΩ max Outer Contact: 2.5mΩ max

Insulator Resistance: 1000 MΩ min

Operating Temp Range: -65°C to +165°C

Subminiature interconnects featuring snap-on coupling and a space-saving alternative to SMAs. Performance up to 4 GHz with simple snap-on coupling and RG174, RG316 or RG178 cable terminations. Right-angle through-hole jack, non-magnetic options available for medical and aerospace applications.
