| Part No. | Stock Qty | 1+ | 100+ | 500+ | 1000+ | Qty |
|---|---|---|---|---|---|---|
|
MDC-118-R
|
4849 in stock | £0.78 | £0.64 | £0.52 | £0.43 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Technical Specifications
Part Number: MDC-118-R
Pin Count: 8 pins
Insulator Material: Durable PBT UL94V-0, Black
Contact Material: Tin-plated Phosphor Bronze for reliability
Current Rating: 100V AC (1 Amp) or 12V DC (2 Amp Max)
Dielectric Withstanding Voltage (DWV): 250V AC for 1 minute
Insulation Resistance: 50MΩ minimum @ 250V DC
Contact Resistance: Maximum of 30mΩ for secure connectivity
Operating Temperature: Reliable performance from -25°C to +85°C
Insertion/Withdrawal Force: 4.5kg Max / 0.9kg to 3kg range
Applications and Key Features

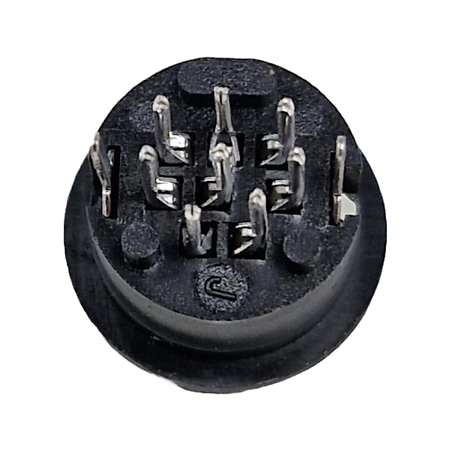

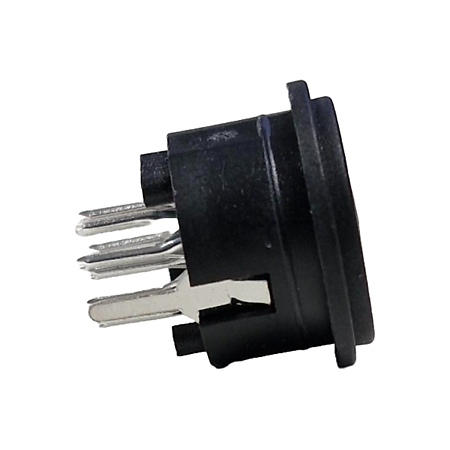

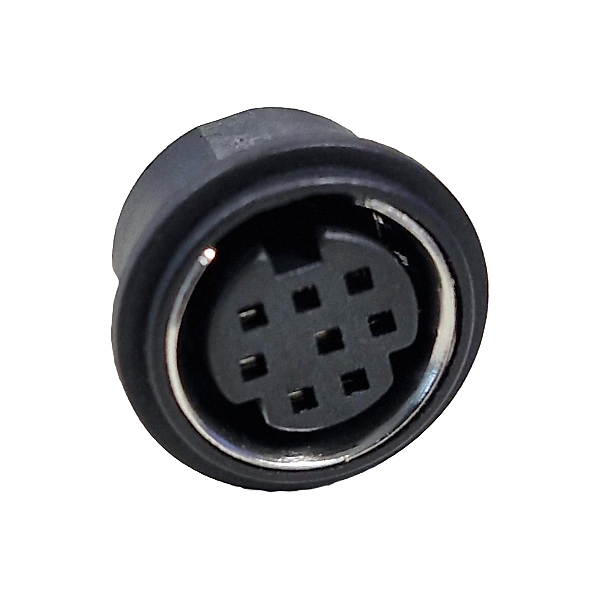

The MDC-118-R is an 8-pin Mini-DIN connector, a compact alternative to DIN connectors, with pins arranged horizontally for efficient use of space. Tailored for S-video connections, data transmission, and other high-precision electronic applications.
Versatile Applications:
Ideal for consumer electronics such as video and audio equipment. Supports data communication and control systems in compact devices.
Widely used in legacy computer peripherals requiring high pin density.
Certifications and Compliance:
Fully compliant with international RoHS standards, ensuring safety and environmental responsibility.
8-Pin Configuration for Enhanced Connectivity:
The horizontal pin arrangement and compact size make the MDC-118-R ideal for devices where space and performance are critical.
