2450 0x T09CB T Lutronic Field-attachable Connectors Quicklock

2450 0x T09CB T Lutronic Field-attachable Connectors Quicklock (2450)

From: £4.10

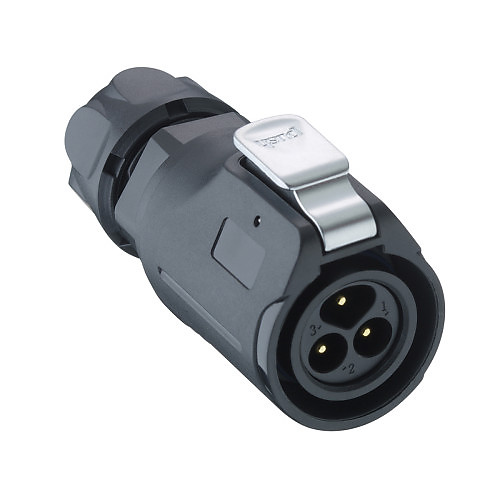

Quicklock plug with locking latch
2 ~ 9 Poles available
IP67, size 16, straight version
Plastic housing and solder terminals
Mates With: 2440 0x T09CB A Lutronic Field-attachable Connectors Quicklock
ULus, CE Approved

Part No.	Stock Qty	50+	100+	500+	Qty
2450 02 T09CB T 2 Pole	Standard delivery 10 - 12 working days *	£4.68	£4.38	£4.10	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2450 03 T09CB T 3 Pole	Standard delivery 10 - 12 working days *	£5.12	£4.77	£4.48	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2450 04 T09CB T 4 Pole	Standard delivery 10 - 12 working days *	£5.32	£4.97	£4.66	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2450 05 T09CB T 5 Pole	Standard delivery 10 - 12 working days *	£4.81	£4.49	£4.21	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2450 07 T09CB T 7 Pole	Standard delivery 10 - 12 working days *	£5.18	£4.84	£4.53	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2450 08 T09CB T 8 Pole	Standard delivery 10 - 12 working days *	£5.32	£4.97	£4.66	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
2450 09 T09CB T 9 Pole	Standard delivery 10 - 12 working days *	£5.48	£5.12	£4.80	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Environmental conditions

Temperature range: -40 °C/+80 °C

Materials

Insulating body: PBT, V-0 according to UL94

Contact pin: CuZn, gold-plated

Housing: PBT, V-0 according to UL94 *1

Locking: Zn-alloy, chrome-plated

Cap nut: PBT, V-0 according to UL94 *2

1) outdoor sustainable (F1 according to UL 746C)

2) outdoor sustainable (F1 according to UL 746C)

Mechanical data

Protection class: IP67 *1

1) only in locked condition with an appropriate counterpart

Connectable conductors for solder area

Section: 1.0–1.5 mm²/AWG 18–16 (2–4 poles)

0.34–0.75 mm²/AWG 22–20 (5–9 poles)

Cable diameter: 7.0–9.0 mm (state of delivery 2–4 poles)

5.0–7.0 mm (state of delivery 5–9 poles)

3.0–5.0 mm (with accessory 9924 SL5)

5.0–7.0 mm (with accessory 9924 SL7)

7.0–9.0 mm (with accessory 9924 SL9)

Electrical data (at Tamb 20 °C)

Rated current: 10 A (2–4 poles) 5 A (5–9 poles)

Rated voltage: 400 V (2–4 poles) 250 V (5–9 poles)

Rated impulse voltage: 2500 V AC (2–4 poles) 1500 V AC (5–9 poles

Lutronic GmbH circular power connectors with Quicklock mechanism, 2–12 poles, four design sizes. Protection degree IP67. For signal and load currents up to 50 A
