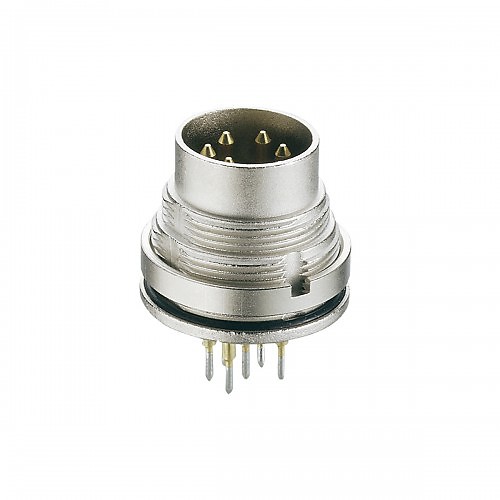

0317 Lumberg PCB Mount IP68 Rear Mounting M16 Chassis Plug

0317 Lumberg PCB Mount IP68 Rear Mounting M16 Chassis Plug (0317)

From: £4.12

PCB solder termination
M16 threaded joint
Rear chassis mount
IP68 rating
3 ~ 14 positions

Part No.	Stock Qty	1+	500+	Qty
0317 03 3 Pole, 50pcs Pack	Standard delivery 38 - 40 working days *	Contact Us	Contact Us	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
0317 04 4 Pole, 50pcs Pack	Standard delivery 38 - 40 working days *	£4.70	£4.12	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
0317 05 5 Pole, 50pcs Pack	Standard delivery 38 - 40 working days *	£5.43	£5.06	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
0317 05-1 5 Pole, 50pcs Pack Config.05-a	Standard delivery 38 - 40 working days *	Contact Us	Contact Us	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
0317 06 6 Pole, 50pcs Pack	Standard delivery 38 - 40 working days *	£5.45	£5.08	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
0317 07 7 Pole, 50pcs Pack	Standard delivery 38 - 40 working days *	£6.17	£5.75	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
0317 07-1 7 Pole, 50pcs Pack Config.07-b	Standard delivery 38 - 40 working days *	Contact Us	Contact Us	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
0317 08 8 Pole, 50pcs Pack	Standard delivery 38 - 40 working days *	£6.57	£6.13	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
0317 08-1 8 Pole, 50pcs Pack Config.08-a	Standard delivery 38 - 40 working days *	Contact Us	Contact Us	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
0317 12 12 Pole, 50pcs Pack	Standard delivery 38 - 40 working days *	£10.95	£10.22	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
0317 14 14 Pole, 50pcs Pack	Standard delivery 38 - 40 working days *	Contact Us	Contact Us	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

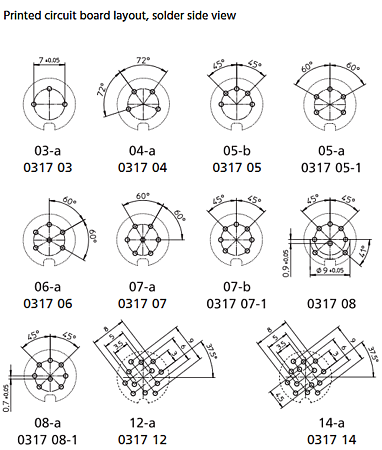

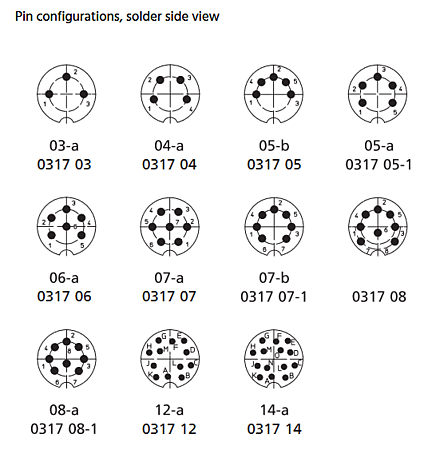

See More Info Tab for Pole Configurations >>

Temperature range: -40 °C/+85 °C

Insulating body: PA GF, V-0 according to UL94

Contact pin: CuZn, silver-plated and flash gold-plated, tin-plated in solder area (3-8 poles) / CuZn, pre-nickel and gold-plated, tin-plated in solder area (12-14 poles)

Housing: Zn diecast, pre-copper and nickel-plated

Protection class:IP68 ^*1

according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart; IPX8 requirements under agreement between manufacturer and user

Electrical data (at T_amb 20 °C)

Rated current: 5A (T_amb 40 °C, 3-8 poles) / 3A (T_amb 40 °C, 12-14 poles)

Rated voltage:

with pollution degree 1:

300 V (versions 03, 04, 05-1, 06, 07)
100 V (versions 05, 07-1, 08, 08-1)
160 V (versions 12, 14)

with pollution degree 2:

250 V (versions 03, 04)
32 V (versions 05, 07-1, 08, 08-1)
160 V (versions 05-1, 06, 07, 12, 14)

Rated impulse voltage:1500 V (versions 03, 04, 05-1, 06, 07, 12, 14) / 500 V (versions 05, 07-1, 08, 08-1)

Series 03 | Circular connectors with threaded joint M16 acc. to IEC 61076-2-106, IP40/IP68

Wide range of parts, 3–14 poles, with and without 360° shielding. Compatible mating acc. to IEC 61076-2-106 and IEC 60130-9. Easy mounting with solder or crimp technology. Protection degrees IP40 and IP68. Includes versions for 4G/5G mobile radio networks acc. to AISG. SWUM™ versions even sealed when unmated. For signal and load currents up to 5 A.
