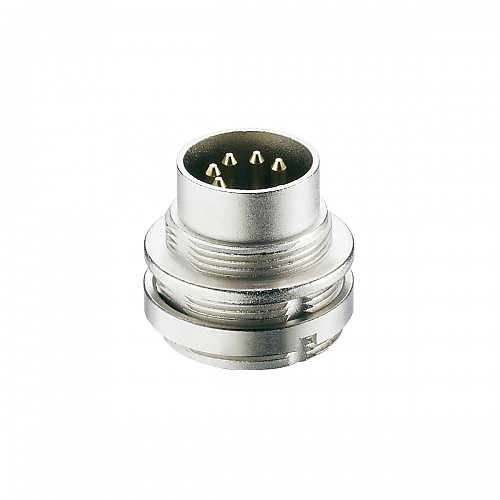

0314 Lumberg IP68 Chassis Front Mounting M16 Threaded Plug (0314)

From: £1.44
Copied to clipboard
  • Front mounting type
  • M16 Threaded joint
  • IP68 Rated
  • WIth solder terminals
  • Lumberg IEC 60130-9 standard



Request 3D Model

Data sheet Technical Specification Related Products
Part No. Stock Qty 1+ 50+ 100+ 500+ Qty
0314 03
3 Pole, 50pcs Pack 		Standard delivery
10 - 12 working days * 		Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
0314 04
4 Pole, 50pcs Pack 		Standard delivery
10 - 12 working days * 		£4.31£3.94£3.64£3.16
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
0314 05
5 Pole, 50pcs Pack 		76 in stock £1.44£1.44Contact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
0314 05-1
5 Pole, 50pcs Pack Config.05-a 		Standard delivery
10 - 12 working days * 		£6.99£4.30£3.99£3.73
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
0314 06
6 Pole, 50pcs Pack 		Standard delivery
10 - 12 working days * 		£4.82£4.43£4.08£3.53
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
0314 07-1
7 Pole, 50pcs Pack Config.07-b 		Standard delivery
10 - 12 working days * 		£4.64£4.64£4.64£4.06
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
0314 08
8 Pole, 50pcs Pack 		Standard delivery
10 - 12 working days * 		£4.98£4.56£4.21£3.64
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
0314 08-1
8 Pole, 50pcs Pack Config.08-a 		Standard delivery
10 - 12 working days * 		Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
0314 12
12 Pole, 50pcs Pack 		25 in stock £7.20Contact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
0314 14
14 Pole, 50pcs Pack 		Standard delivery
10 - 12 working days * 		Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

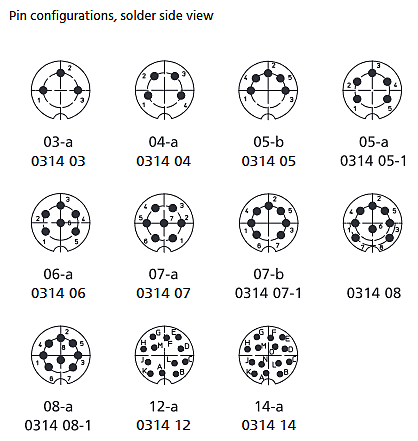

See More Info Tab For Pole Configurations >>

Environmental conditions

Temperature range: -40 °C/+85 °C

Materials

Insulating body: PA GF, V-0 according to UL94

Contact pin: CuZn, silver-plated and flash gold-plated (3-8 poles) / CuZn, pre-nickel and gold-plated (12-14 poles)

Housing: Zn diecast, pre-copper and nickel-plated

Seal: NBR

Mechanical data

Protection class: IP68  *1

  1. 1 according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart; IPX8 requirements under agreement between manufacturer and user, connectable conductors for solder area

Section: ≤ 0.75 mm² (AWG 20) (3-8 poles) / ≤ 0.25 mm² (AWG 24) (12-14 poles)

Electrical data (at Tamb 20 °C)

Rated current: 5 A (Tamb 40 °C, 3-8 poles) / 3 A (Tamb 40 °C, 12-14 poles)

Rated voltage:

With pollution degree 1:

  • 300 V (versions 03, 04, 05-1, 06, 07)
  • 100 V (versions 05, 07-1, 08, 08-1)
  • 160 V (versions 12, 14)

With pollution degree 2:

  • 250 V (versions 03, 04)
  • 32 V (versions 05, 07-1, 08, 08-1)
  • 160 V (versions 05-1, 06, 07, 12, 14)

Rated impulse voltage: 1500 V (versions 03, 04, 05-1, 06, 07, 12, 14) / 500 V (versions 05, 07-1, 08, 08-1)

RoHS Compliant

Series 03 | Circular connectors with threaded joint M16 acc. to IEC 61076-2-106, IP40/IP68

Wide range of parts, 3–14 poles, with and without 360° shielding. Compatible mating acc. to IEC 61076-2-106 and IEC 60130-9. Easy mounting with solder or crimp technology. Protection degrees IP40 and IP68. Includes versions for 4G/5G mobile radio networks acc. to AISG. SWUM™ versions even sealed when unmated. For signal and load currents up to 5 A.
