1503 09
3.5mm Stereo PCB Socket |
130 in stock | £0.93 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
1503 09
Environmental conditions
Temperature range: -10 °C/+70 °C
Materials
Insulating body: PBT GF, V-0 according to UL94
Contact spring: Cu alloy, silver-plated
Cover: PC, HB
Mechanical data
Mating cycles: ≥ 5000
Insertion force: 3–20 N *1
Withdrawal force: 3–20 N *2
1) measured with a gauge plug
2) measured with a gauge plug
Electrical data (at Tamb 20 °C)
Contact resistance: ≤ 30 mΩ
Rated current: 1 A
Rated voltage: 34 V AC/DC
Rated impulse voltage: 250 V/60 s
Lumberg 15 Series Jack connector range, mating compatible acc. to JISC 6560, three sizes, mono and stereo. Wide range of cable and chassis parts. For signal currents up to 2 A. Contact Toby to Design and Buy Lumberg connectors at best prices.

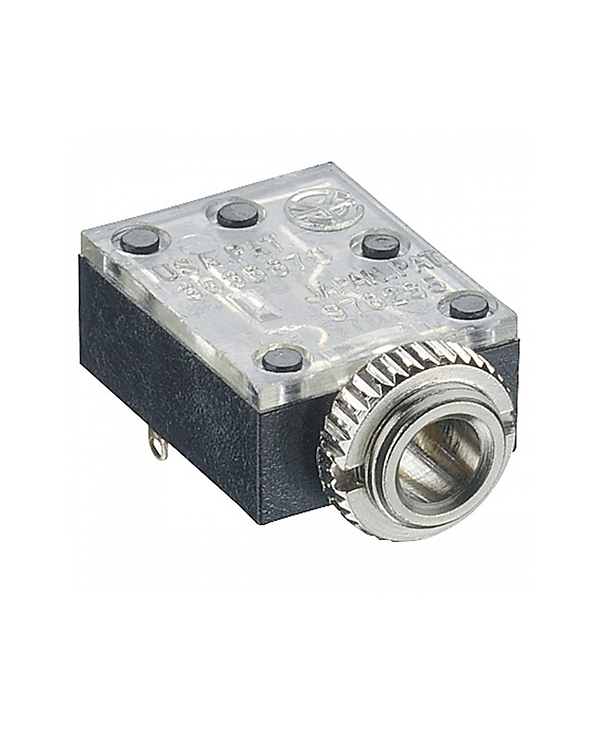

Lumberg 1503 09 is a jack chassis socket acc. to JIS C 6560 JC35J3B, 3.5 mm, 3 poles/stereo, angular version, with 2 break contacts and solder eyes, for printed circuit boards, for back side mounting
