| Part No. | Stock Qty | 100+ | 1000+ | 5000+ | Qty |
|---|---|---|---|---|---|
|
1502 04
500pcs Pack |
Standard delivery 10 - 12 working days * |
£2.72 | £2.54 | £2.36 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Environmental conditions
Temperature range: -20 °C/+70 °C
Materials
Insulating body: PBT GF, V-0 according to UL94
Contact spring: Cu alloy, nickel-plated/gold-plated
Mechanical data
Mating cycles: ≥ 5000
Insertion force: 4–20 N
Withdrawal force: 2–15 N
Electrical data (at Tamb 20 °C)
Contact resistance: ≤ 50 mΩ
Rated current: 1 A
Rated voltage: 34 V AC/DC
Rated impulse voltage: 500 V/60 s

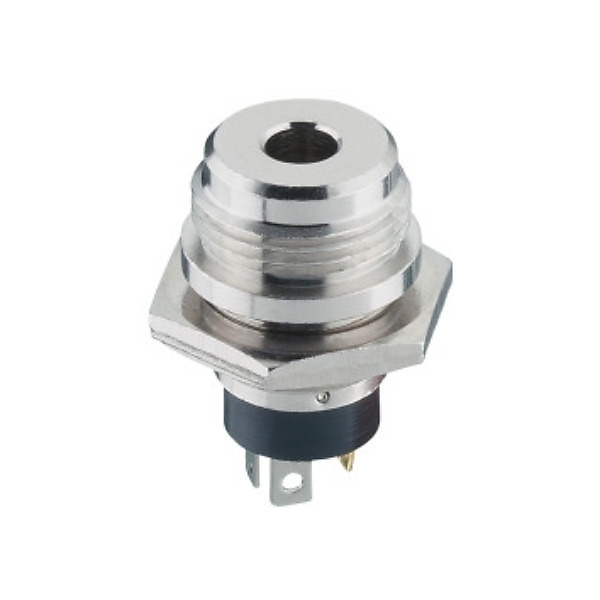

Lumberg Jack chassis socket acc. to JIS C 6560 JC35J3A, 3.5 mm, 3 poles/stereo, with threaded joint, with solder eyes, for front mounting. Mates with 1532 05
