| Part No. | Stock Qty | 100+ | 500+ | Qty |
|---|---|---|---|---|
|
1501 13
3 Pole Stereo/Metal Collar |
386 in stock | £0.65 | £0.52 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Environmental conditions
Temperature range: -16 °C/+65 °C
Materials
Insulating body: PBT, V-0 according to UL94
Contact spring: CuSn, silver-plated
Cover: PC
Mechanical data
Mating cycles: 5000
Insertion force: 2.9–29.4 N
Withdrawal force: 2.9–29.4 N
Electrical data (at Tamb 20 °C)
Contact resistance: ≤ 50 mΩ
Rated current: 1 A
Rated voltage: 12 V DC

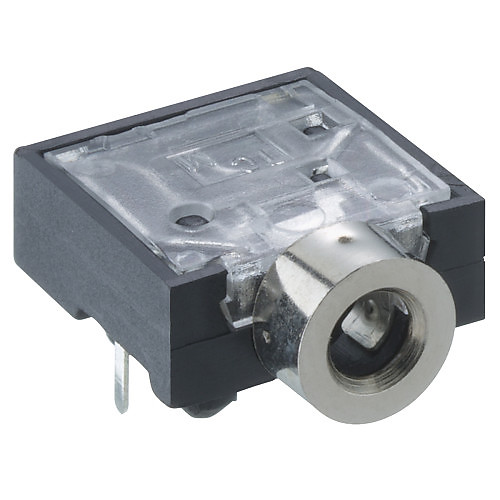

Lumberg Jack chassis socket acc. to JIS C 6560 JC25J3A, 2.5 mm, 3 poles/stereo, angular version, with metal collar, for printed circuit boards.
Mating plug is KLS-13
