| Part No. | Stock Qty | 500+ | Qty |
|---|---|---|---|
|
1501 05
500pcs Pack |
Standard delivery 10 - 12 working days * |
£0.74 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Environmental conditions
Temperature range: -20 °C/+70 °C
Materials
Insulating body: PBT GF, V-0 according to UL94
Contact spring: Cu alloy, tin-plated
Mechanical data
Mating cycles: ≥ 5000
Insertion force: 5–20 N
Withdrawal force: 4–20 N
Electrical data (at Tamb 20 °C)
Contact resistance: ≤ 50 mΩ
Rated current: 0,5 A
Rated voltage: 34 V AC/DC
Rated impulse voltage: 500 V/60 s
Lumberg jack connectors, mating compatible acc. to JISC 6560, three sizes, mono and stereo. Wide range of cable and chassis parts. For signal currents up to 2 A.

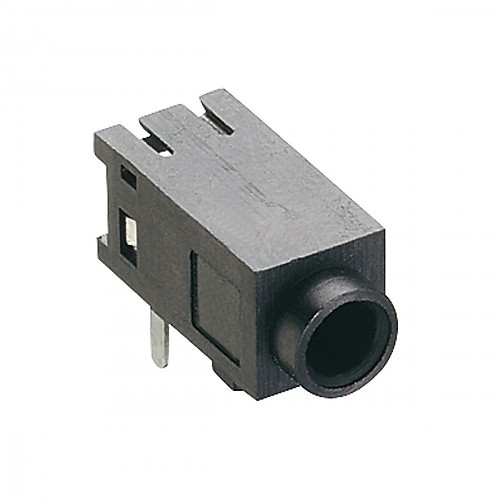

1501 05 Is a Lumberg Jack chassis socket acc. to JIS C 6560 JC25J3A, 2.5 mm, 3 poles/stereo, angular version, for printed circuit boards, with plastic collar.
