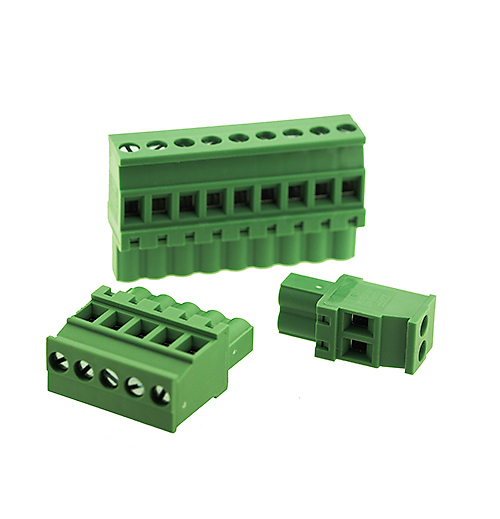

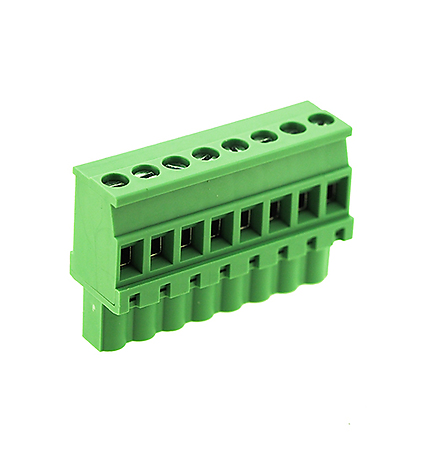

Valcon VTB2-EDGKB-P-500-xP-G Series 5.00mm Pitch PCB Terminal Block

Valcon VTB2-EDGKB-P-500-xP-G Series 5.00mm Pitch PCB Terminal Block (VDGKB)

From: £0.204

5.00mm pitch PCB terminal block for secure wire-to-board connections
Durable PA66 UL94V-0 flame-retardant housing
Screw: M3.0 steel, zinc-plated with slot type for secure fastening
Contact and clamp: Copper alloy, tin-plated for excellent conductivity
Cover: PA66 UL94V-0 for added durability
Rated voltage: 300V (UL) / 320V (IEC)
Rated current: 15A (UL) / 18A (IEC)
Wire range: 28-12AWG / 2.5mm²
Contact resistance: ≤ 20mΩ for minimal signal loss
Operating temperature: -40°C to +105°C
Compliant with REACH and RoHS standards

Request 3D Model

Part No.	Stock Qty	1000+	2000+	5000+	Qty
VTB2-EDGKB-P-500-2P-G 2 Pos.	6 in stock	£0.305	£0.244	£0.204	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGKB-P-500-3P-G 3 Pos.	6 in stock	£0.458	£0.367	£0.305	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGKB-P-500-4P-G 4 Pos.	5 in stock	£0.624	£0.499	£0.416	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGKB-P-500-5P-G 5 Pos.	3 in stock	£0.764	£0.611	£0.509	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGKB-P-500-6P-G 6 Pos.	4 in stock	£0.916	£0.733	£0.611	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGKB-P-500-8P-G 8 Pos.	6 in stock	£1.22	£0.97	£0.815	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGKB-P-500-9P-G 9 Pos.	4 in stock	£1.375	£1.10	£0.916	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Pitch: 5.00mm

Housing Material: PA66, UL94V-0 flame-retardant

Screw: M3.0 Steel, Zinc-plated (Slot Type)

Contact & Clamp Material: Copper alloy, tin-plated

Cover Material: PA66 UL94V-0

Rated Voltage: 300V (UL) / 320V (IEC)

Rated Current: 15A (UL) / 18A (IEC)

Wire Range: 28-12AWG / 2.5mm²

Contact Resistance: ≤ 20mΩ

Insulation Resistance: ≥ 500MΩ/DC500V

Withstanding Voltage: AC2000V for 1 minute

Operating Temperature: -40°C to +105°C

Soldering Temperature: 250°C ± 5 sec

Torque: 0.5Nm (4.43Lb.in)

Strip Length: 7-8mm

Compliance: REACH and RoHS certified

The Valcon VTB2-EDGKB-F-500-xP-G Series PCB Terminal Blocks are designed for robust and high-reliability wire-to-board connections in industrial, telecommunications, and power distribution applications.

Featuring a 5.00mm pitch, this series is built with a UL94V-0 flame-retardant PA66 housing and a secure M3.0 steel zinc-plated screw mechanism, ensuring superior electrical and mechanical performance. With a rated current of 15A (UL) and 18A (IEC), the VTB2-EDGKB-F-500-xP-G Series meets the needs of high-power PCB applications while maintaining compliance with REACH and RoHS standards.

The copper alloy tin-plated contact and clamp system provides excellent conductivity and secure wire retention, making it ideal for demanding environments where long-lasting connections are critical.

For custom configurations, technical drawings, samples or bulk inquiries, Contact Toby
