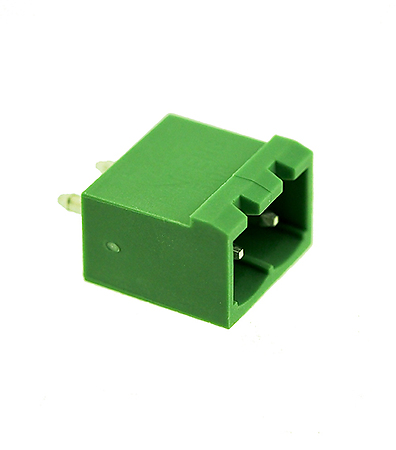

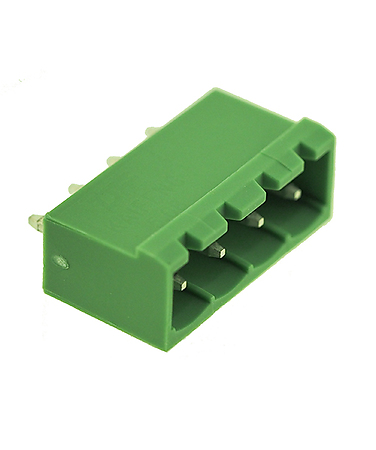

Valcon VTB2-EDGCV-P-500-xP-G Series - 5.00mm Pitch PCB Terminal Block

Valcon VTB2-EDGCV-P-500-xP-G Series - 5.00mm Pitch PCB Terminal Block (VDGCV)

From: £0.098

5.00mm pitch PCB terminal block for high-reliability connections
Durable PA66 UL94V-0 flame-retardant housing
Copper alloy pin header with tin plating for excellent conductivity
Rated voltage: 300V (UL) / 320V (IEC)
Rated current: 15A (UL) / 20A (IEC)
Contact resistance: ≤ 20mΩ for minimal signal loss
Operating temperature: -40°C to +105°C
Compliant with REACH and RoHS standards

Request 3D Model

Part No.	Stock Qty	1000+	2000+	5000+	Qty
VTB2-EDGCV-P-500-2P-G 2 Pos.	3 in stock	£0.255	£0.204	£0.17	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGCV-P-500-3P-G 3 Pos.	3 in stock	£0.147	£0.118	£0.098	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGCV-P-500-4P-G 4 Pos.	3 in stock	£0.204	£0.163	£0.136	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGCV-P-500-5P-G 5 Pos.	3 in stock	£0.255	£0.204	£0.17	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGCV-P-500-6P-G 6 Pos.	3 in stock	£0.294	£0.235	£0.196	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGCV-P-500-8P-G 8 Pos.	3 in stock	£0.407	£0.326	£0.272	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
VTB2-EDGCV-P-500-9P-G 9 Pos.	7 in stock	£0.458	£0.367	£0.305	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Pitch: 5.00mm

Housing Material: PA66, UL94V-0 flame-retardant

Pin Header Material: Copper alloy, tin-plated

Rated Voltage: 300V (UL) / 320V (IEC)

Rated Current: 15A (UL) / 20A (IEC)

Contact Resistance: ≤ 20mΩ

Insulation Resistance: ≥ 500MΩ/DC500V

Withstanding Voltage: AC2000V for 1 minute

Operating Temperature: -40°C to +105°C

Soldering Temperature: 250°C ± 5 sec

Compliance: REACH and RoHS certified

The Valcon VTB2-EDGCV-P-500-xP-G Series PCB Terminal Blocks are designed for secure and high-reliability electrical connections. With a 5.00mm pitch and robust PA66 UL94V-0 flame-retardant housing, this series ensures safety, durability, and performance in industrial, telecommunications, and power distribution applications.

The copper alloy pin headers with tin plating provide superior conductivity, while the low contact resistance ensures minimal signal loss. Rated for 15A (UL) and 20A (IEC), the VTB2-EDGCV-P-500-xP-G Series supports high-current applications, making it ideal for PCB designs requiring secure and long-lasting connections.

This series conforms to REACH and RoHS standards, guaranteeing environmental compliance and suitability for international markets.

For custom configurations, technical drawings, samples or bulk enquiries, Contact Toby
