| Part No. | Stock Qty | 1+ | 100+ | 500+ | 1000+ | Qty |
|---|---|---|---|---|---|---|
|
MH140-635M703
1x3 positions |
60 in stock | £2.67 | £2.22 | £1.78 | £1.48 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Housing Material: Green PA66
Cage Clamp: Zinc plated Steel
Contact: Tin Plated Brass
Screw Thread: M3 Zinc Plated Steel
Wire Gauge: 8 ~ 18 AWG
PCB Hole Diameter: 1.6mm
Tightening Torque: 9.0 Lb-in Max
Operating Temperature: -40°C to +105°C
Connection in Acc. with Standard EN-TUV
Nominal Current IN: 57A
Nominal Cross Section: 10mm2
Maximum Load Current: 57A
Insulating Material: PA
Inflammability Class Acc. to UL94-V0
Nominal Voltage, UL/CUL: 600V
Nominal Current, UL/CUL: 35A

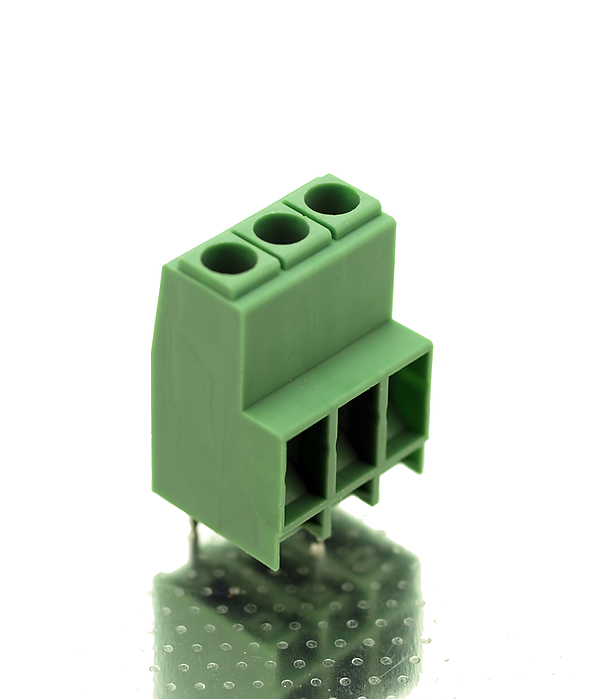

DECA Switchlab MH140 Series 6.35mm pitch high power modular PCB mount terminal blocks.
