| Part No. | Stock Qty | 1+ | 100+ | 500+ | 1000+ | Qty |
|---|---|---|---|---|---|---|
|
MC100-500-02
1x2 positions |
1428 in stock | £0.56 | £0.48 | £0.38 | £0.32 | |
|
MC100-500-03
1x3 positions |
220 in stock | £0.79 | £0.74 | £0.59 | £0.49 | |
|
MC100-500-04
1x4 positions |
133 in stock | £1.12 | £0.99 | £0.79 | £0.66 | |
|
MC100-500-05
1x5 positions |
1243 in stock | £1.48 | £1.23 | £0.99 | £0.82 | |
|
MC100-500-06
1x6 positions |
110 in stock | £1.78 | £1.48 | £1.19 | £0.99 | |
|
MC100-500-08
1x8 positions |
1057 in stock | £2.57 | £2.13 | £1.71 | £1.42 | |
|
MC100-500-09
1x9 positions |
130 in stock | £3.19 | £2.66 | £2.12 | £1.77 | |
|
MC100-500-10
1x10 positions |
268 in stock | £2.98 | £2.48 | £1.99 | £1.66 | |
|
MC100-500-12
1x12 positions |
49 in stock | £2.50 | £2.50 | £2.50 | £2.10 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Cage clamp: Brass, Ni plated
Contact: Phosphor bronze, Tin plated, 0.4t
Insulating Body:Polyamide 66 (UL94V-0)
Screw: M3.0, steel, Zn plated
Color: Green
Operation temperature: -55 °C to 105 °C
Short-time temperature: up to 250°C ( 482℉)
Current rating: 16 Amp AC 300V
Insulation Withstands Volt: AC 2000V min
Insulation resistance: >5000MΩ DC 500V
Wire strip length: 4 ~ 5mm
Wire range: 14 ~ 24 AWG
Screw torque: 4.5 lb-inch

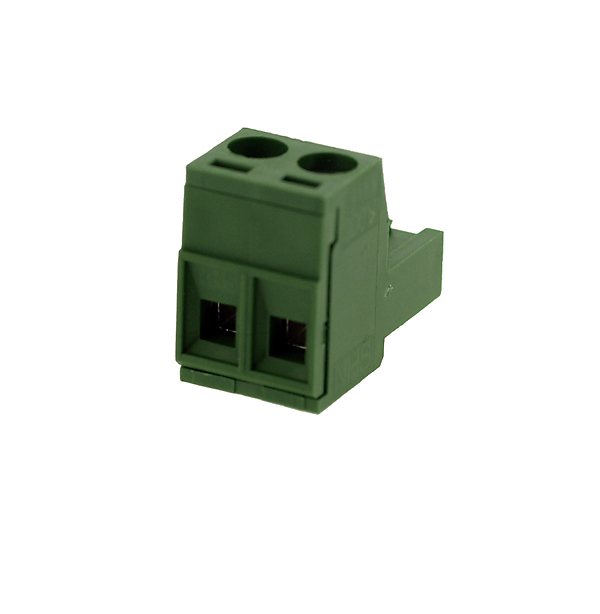

A high quality 5mm pitch, 16 Amp pluggable terminal block header from DECA Switchlab.
