| Part No. | Stock Qty | 1+ | 100+ | 500+ | 1000+ | Qty |
|---|---|---|---|---|---|---|
|
MA212-350-M2
1x2 positions |
290 in stock | £0.37 | £0.31 | £0.24 | £0.21 | |
|
MA212-350-M3
1x3 positions |
5022 in stock | £0.56 | £0.46 | £0.37 | £0.31 | |
|
MA212-350-M6
1x6 positions |
Standard delivery 15 - 17 working days * |
£0.92 | £0.74 | £0.64 | £0.59 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Terminal: Brass, Tin plated
Wire protector: Stainless strip steel
Insulating Body: Polyester
Screw: M2.0, steel, chromatised
Colour: Black
Operation temperature: -33 °C to 105 °C
Short-time temperature: up to 200°C ( 392℉)
Current rating: 6 Amp AC300V
Insulation Withstands Volt: AC1500V min
Insulation resistance: >5000MΩ at DC500V
PCB hole Dia.: φ1.4mm
Wire strip length: 4 ~ 5mm
Wire range: 16 ~ 26 AWG
Screw torque: 2.5 lb-inch
Toby can interlock your requirement from 2 pins upwards, turning zero stock into next day delivery, Contact Toby now to make your FAST STOCK requirement.

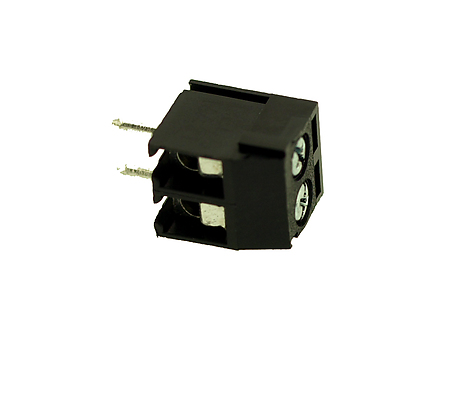

DECA Swicthlab black plastic with M2 slot screws 8.2mm board height Base Modular 2 & 3 position
