KB Series Lumberg Pluggable Screw Terminal Blocks (KB)

From: £0.21

PCB Through board mounted
5mm Pitch, single row
Vertical mating orientation
Consecutive placement without loss of pitch
10Amp Current Rating
UL & CSA approved

Part No.	Stock Qty	2000+	Qty
KB 02 2 Pos. 200pcs Pack	Standard delivery 15 - 17 working days *	£0.21	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KB 03 3 Pos. 200pcs Pack	Standard delivery 15 - 17 working days *	£0.23	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KB 04 4 Pos. 200pcs Pack	Standard delivery 15 - 17 working days *	£0.28	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KB 05 5 Pos. 200pcs Pack	Standard delivery 15 - 17 working days *	£0.34	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KB 06 6 Pos. 200pcs Pack	Standard delivery 15 - 17 working days *	£0.39	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KB 07 7 Pos. 200pcs Pack	Standard delivery 15 - 17 working days *	£0.45	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KB 08 8 Pos. 200pcs Pack	Standard delivery 15 - 17 working days *	£0.49	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KB 09 9 Pos. 200pcs Pack	Standard delivery 15 - 17 working days *	£0.56	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KB 10 10 Pos. 200pcs Pack	Standard delivery 15 - 17 working days *	£0.64	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Environmental conditions

Temperature range: -25 °C/+100 °C ^*1

1) upper limit temperature (insulating body) RTI (electrical) of the UL Yellow Card

Materials

Insulating body: PA, V-2 according to UL94

Contact spring: CuSn, pre-nickel and tin-plated

Mechanical data

Insertion force/contact: ≤ 2.5 N ^*1

Withdrawal force/contact: ≥ 1.5 N ^*2

1) measured with a polished steel pin, nominal thickness 0.7 mm

2) measured with a polished steel pin, nominal thickness 0.7 mm

Electrical data (at T_amb 20 °C)

Contact resistance: ≤ 5 mΩ

Rated current: 10 A (T_amb 65 °C)

Rated voltage: 250 V AC ^*1

_{1) according to IEC 60664/DIN EN 60664, CTI UL classification according to ANSI/UL 746A}

Lumbergs space-saving solution of pluggable screw termination, no mismating, with locking. Lead sections up to 4.0 mm². For signal and load currents up to 10 A, pitch 5.0 mm (.197").

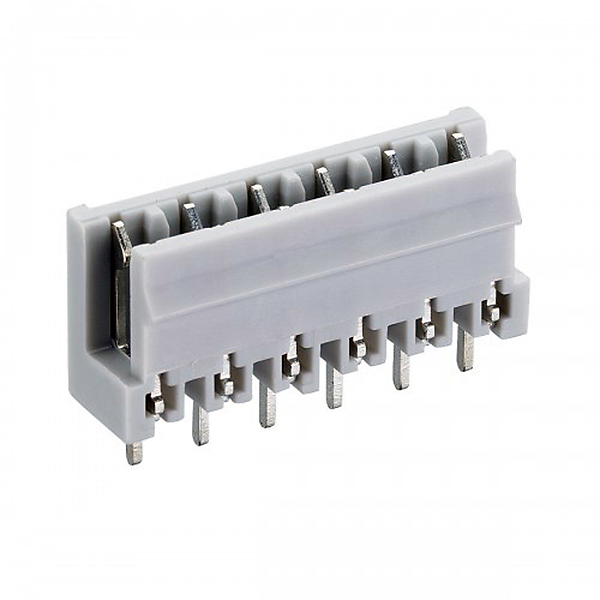

Lumberg KB Series PCB sockets, pitch 5mm, upright, straight solder pins in single row, consecutive placement without loss of pitch.
