| Part No. | Stock Qty | 1+ | Qty |
|---|---|---|---|
|
3611 05 K02
RAST5 |
309 in stock | £0.79 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
GWT 750 °C
Contact resistance ≤ 5 mΩ
Rated current 10 A at Tamb 60 °C
Rated voltage 36115 630 V AC (VDE)/250 V AC (UL, CSA)
Rated voltage 3611 M085 320 V AC (VDE)/250 V AC (UL, CSA)
Material group 36115 I (IEC)/0 (UL) CTI ≥ 600)
Material group 3611 M085 IIIa (IEC)/2 (UL) (CTI ≥ 250)
Creepage distance 3.4mm
Clearance 3.4mm Insulation resistance > 10 GΩ

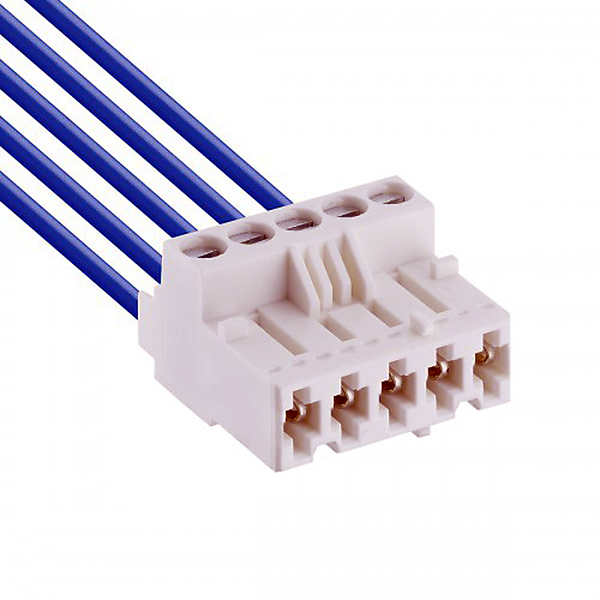

Lumber RAST 5 connector for indirect mating, with screw terminal, with lift clamp with protection against misplacing, with interior locking, consecutive placement without loss of pitch.
