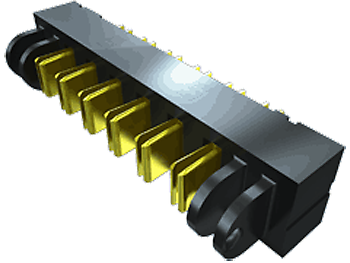

FMPT - Samtec 5.00mm PowerStrip™ 30A Vertical Hinging Power Terminal Strip

FMPT - Samtec 5.00mm PowerStrip™ 30A Vertical Hinging Power Terminal Strip (FMPT)

From: £1.271

5.00mm (.1969") pitch vertical power terminal
Rugged hinge-style mating for blind or high-vibration applications
Dual blade contacts support up to 30 Amps per contact
Selective gold or matte tin plating options
Locking clip option available for secure retention

Part No.	Stock Qty	Price Breaks				Qty
FMPT-02-01-L-S-V 3D CAD	Standard delivery 7 - 9 working days *	1+: £2.89	25+: £2.81	50+: £2.66	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
FMPT-04-01-L-S-V 3D CAD	Standard delivery 7 - 9 working days *	1+: £3.97	25+: £3.86	50+: £3.65	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
FMPT-06-01-L-S-V 3D CAD	Standard delivery 7 - 9 working days *	1+: £5.03	25+: £4.89	50+: £4.63	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
FMPT-08-01-L-S-V 3D CAD	Standard delivery 7 - 9 working days *	1+: £6.09	10+: £5.92	25+: £5.61	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

Qty.	Unit Price	Ext. Price

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Insulator Material: Black LCP

Terminal Material: Copper Alloy

Plating:

• Au or Sn over 50 μ" (1.27 μm) Ni

• Tin on tails

Operating Temp Range: -55 °C to +125 °C

Voltage Rating: 250 VDC

Current Rating (per contact):

• 1 pin: 29.2 A

• 2 pins: 27.1 A

• 3 pins: 25.2 A

• 4 pins: 19.7 A

• 6 pins: 17.6 A

• 8 pins: 15.8 A

Contact System: Dual-blade power

Locking Clip Option: Manual placement required

Lead-Free Solderable: Yes

UL File No.: E111594

Summary:
Samtec’s FMPT PowerStrip™ 30A vertical terminals deliver compact high-current performance with hinge-style mating and robust dual-blade contacts. Ideal for rugged and blind-mating designs.

What is the FMPT connector used for?
The FMPT is used in power-to-board applications requiring up to 30A per contact with rugged vertical mating, often in industrial or high-vibration environments.

Does this connector support blind mating?
Yes, the hinge-style mating design is ideal for blind and misaligned mating applications.

Is the FMPT compatible with other Samtec PowerStrip™ parts?
Yes, FMPT mates with FMPS series headers for a full 30A power interconnect solution.

What PCB thickness is supported?
The –01 lead style is designed for 1.57mm (0.062") thick PCBs.

Are locking clips required?
The LC locking clip option improves retention but must be manually placed and is not compatible with the SD (Screw Down) option.
