| Part No. | Stock Qty | Price Breaks | Qty | ||||
|---|---|---|---|---|---|---|---|
|
FMPS-02-01-L-S-RA
3D CAD
|
Standard delivery 7 - 9 working days * |
1+: £2.79 | 25+: £2.71 | 50+: £2.57 | View all prices | ||
|
FMPS-02-01-L-S-RA-SD
3D CAD
|
Standard delivery 7 - 9 working days * |
1+: £2.79 | 25+: £2.71 | 50+: £2.57 | View all prices | ||
|
FMPS-04-01-L-S-RA
3D CAD
|
Standard delivery 7 - 9 working days * |
1+: £3.82 | 25+: £3.71 | 50+: £3.52 | View all prices | ||
|
FMPS-04-01-L-S-RA-SD
3D CAD
|
1 in stock | 1+: £3.82 | 25+: £3.62 | 50+: £3.52 | View all prices | ||
|
FMPS-04-01-T-S-RA-SD
3D CAD
|
Standard delivery 7 - 9 working days * |
1+: £2.77 | 25+: £2.69 | 50+: £2.55 | View all prices | ||
|
FMPS-06-01-L-S-RA-SD
3D CAD
|
Standard delivery 7 - 9 working days * |
1+: £4.85 | 25+: £4.71 | 50+: £4.46 | View all prices | ||
|
FMPS-08-01-L-S-RA-SD
3D CAD
|
Standard delivery 7 - 9 working days * |
1+: £5.86 | 10+: £5.70 | 25+: £5.40 | View all prices | ||
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us

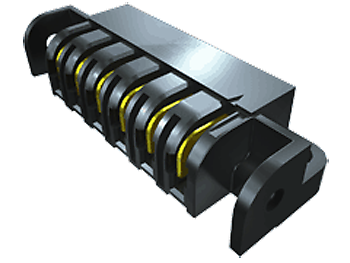

Insulator Material: LCP, Black
Terminal Material: Copper Alloy
Contact Plating:
• -L: 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail
• -T: Matte Tin overall
Voltage Rating: 250 V
Current Rating (per contact):
• 1 pin = 29.4 A
• 2 pins = 27.2 A
• 3 pins = 22.1 A
• 4 pins = 19.6 A
• 8 pins = 17.1 A
Lead Style:
• -01 for 1.57 mm thick PCB
Mounting Options:
• Screw Down (-SD)
• Locking Clip (-LC)
Orientation: Right-angle
Row Specification: Single Row
Pitch: 5.00 mm
Positions Available: 2, 4, 6, 8
Applications:
Ideal for blind-mating high-power PCB connections in industrial and power supply systems. The right-angle socket features a floating design and creep-age clearance support for robust alignment during mating.
Compliance:
• UL Recognized
• Lead-Free Solderable
• Designed for high-reliability board-to-board power delivery
• Suitable for automated or manual assembly
Q: What is the current rating of the FMPS socket strip?
A: The FMPS socket can deliver up to 29.4 Amps per contact depending on pin count.
Q: Is the Samtec FMPS suitable for blind-mating applications?
A: Yes, the FMPS socket uses a hinging contact system ideal for blind-mate alignments.
Q: What plating options are available?
A: You can select 10 µ" gold with matte tin tail (-L), or matte tin overall (-T).
Q: Can I use this in power supplies or battery systems?
A: Absolutely. It's rated for high-current use and offers screw-down and locking clip retention for rugged environments.
