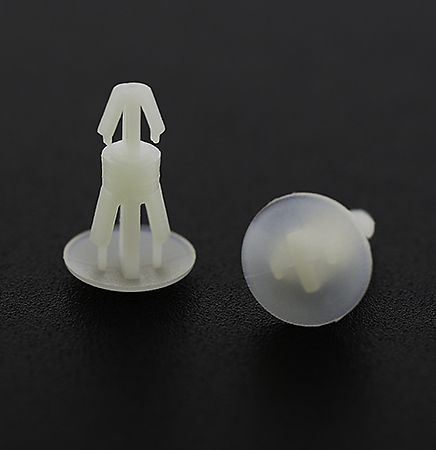

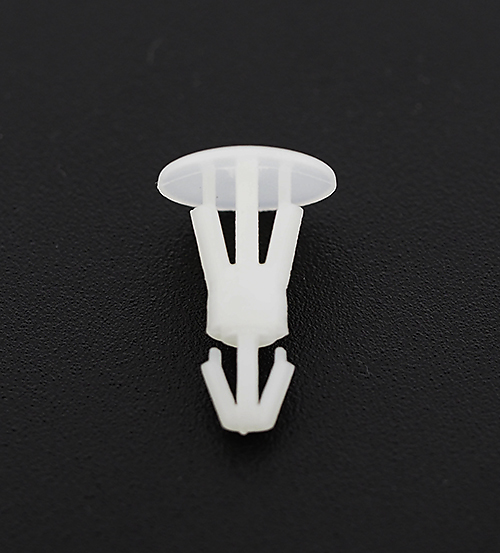

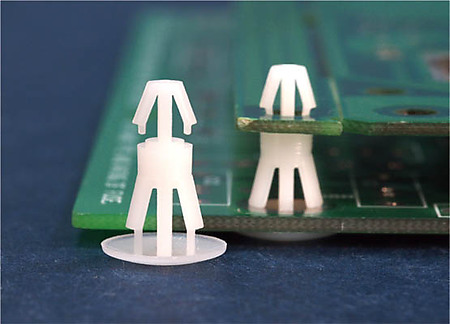

RCB – Valcon Button-Head PCB Spacer Support, Snap-In, Nylon UL94V-0

RCB – Valcon Button-Head PCB Spacer Support, Snap-In, Nylon UL94V-0 (RCBX)

From: £0.038

Compact button-head PCB spacer for 4.0mm mounting holes
Locks into 5.5mm chassis cut-outs for secure fit
Supports 1.6mm PCBs and 1.5–2.2mm panel thicknesses
Fast snap-fit installation – no tools required
Available in fixed heights from 3.5mm to 35.5mm
Flame-retardant UL94V-0 nylon, natural finish
RoHS compliant and ideal for industrial electronics
Contact Toby for samples, CAD models and expert advice

Part No.	Stock Qty	100+	500+	1000+	Qty
RCB-3 3.5mm Spacer	8 in stock	£0.038	£0.038	£0.038	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
RCB-5 5mm Spacer	8 in stock	£0.04	£0.04	£0.04	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
RCB-8 8mm Spacer	896 in stock	£0.072	£0.06	£0.048	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Material: Nylon 66 UL94V-0

PCB Mounting Hole Diameter: 4.0mm

Chassis Hole Diameter: 5.5mm

Recommended PCB Thickness: 1.6mm

Chassis Thickness Range: 1.5mm to 2.2mm

Available Spacer Heights: 3.5mm to 35.5mm

Colour: Natural

RoHS Compliant

Valcon snap-fit PCB supports with button-head locking design. Fits 4.0mm PCB and 5.5mm chassis holes for fast, secure mounting. Suitable for 1.6mm boards with fixed support heights from 3.5mm to 35.5mm. UL94V-0 nylon. RoHS compliant.
