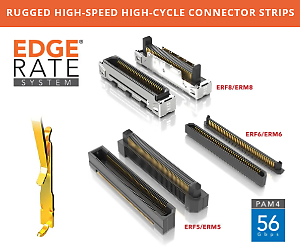

Edge Rate® Rugged, High-Speed High Cycle Connector Strips

Samtec's rugged Edge Rate® contact systems are optimized for signal integrity performance. These awesome connectors are available to design & buy at Toby now.

What are Edge Rate® contacts?

• Smooth milled mating surface reduces wear and increases durability
• Lower insertion and withdrawal forces
• Robust when “zippered” during unmating
• Minimized parallel surface area reduces broadside coupling and crosstalk
• Designed, simulated and optimized for 50 Ω and 100 Ω systems

Edge Rate® connectors are designed for high speed, high cycle applications. The smooth milled mating surface area of the contact reduces the wear tracks on the contact increasing the durability and cycle life of the connector system. Giving superior performance over stamped contacts, the smooth contact surface provides lower insertion and withdrawal forces, allowing the connectors to be zippered when unmating.

Toby provides design assistance with samples and models to help you find your Edge Rate® solution fast. CONTACT TOBY

What are the benefits and options?

• Choice of 0.50 mm, 0.635 mm or 0.80 mm pitch
• 0.50mm pitch system (ERF5/ERM5) offers up to 40% PCB space savings vs. 0.80mm pitch
• 0.635mm pitch system with extremely slim 2.5mm body width (ERF6/ERM6)
• Rugged latching, locking and 360º shielding also available
• Up to 1.5mm contact wipe

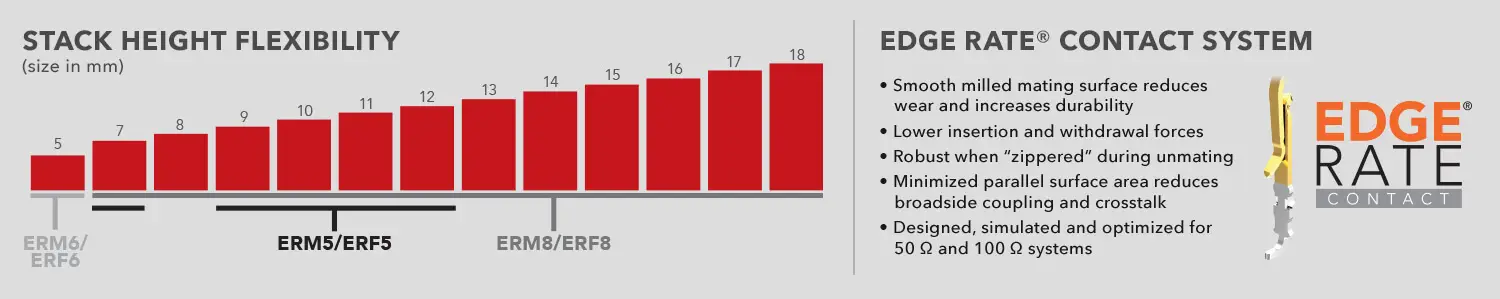

With stack heights available from 5mm (ERF6/ERM6), 7mm-12mm (ERF5/ERM5) rising to 18mm (ERF8/ERM8) these mated sockets can provide low profile solutions for speeds up to PAM 4 56Gbps. These rugged high-speed connector strips are compatible with Samtec mPOWER® UMPT/UMPS series for ultimate power/signal design flexibility.
