| Part No. | Stock Qty | 1+ | 100+ | 500+ | 1000+ | 5000+ | Qty |
|---|---|---|---|---|---|---|---|
|
FFC1-15-V-PP-WL-L
Sold in multiples of 10 |
1940 in stock | £0.24 | £0.21 | £0.19 | £0.13 | £0.12 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Insulator Material: Nylon UL94V-0 Black
Actuator Material: PPS UL94V-O Black (Wide Latch)
Contact Material: Copper Alloy
Contact Plating: Tin over Ni underplate
Current Rating: 0.5A per contact
Voltage Rating: 50 VAC Max.
DWV: 500AV AC for 1 minute
Insulation Resistance: 800MΩ min.
Contact Resistance: 20mΩ Max.
Operating Temperature: -20°C to +85°C
Durability: 20 cycles with 0.30mm thick FFC
Retention Force: 30gf x pos. min.

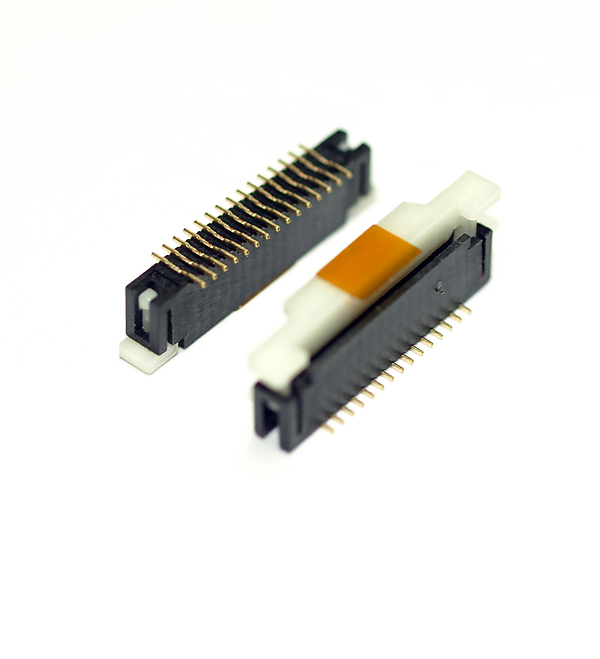

Valcon parellel pin style suitable for Raspberry Pi camera applications. Supplied on cut tape from reeled stock, mates with toby parts:
