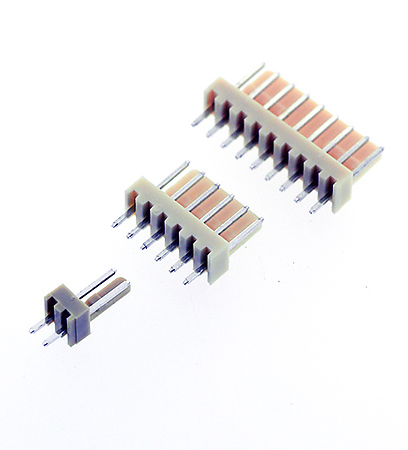

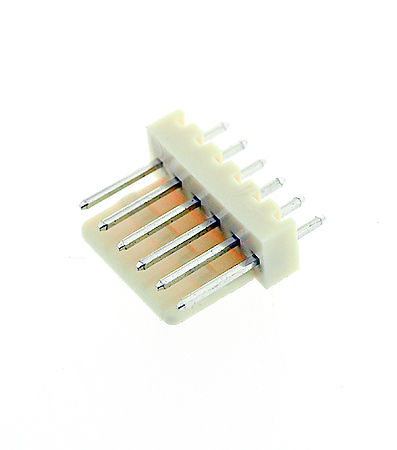

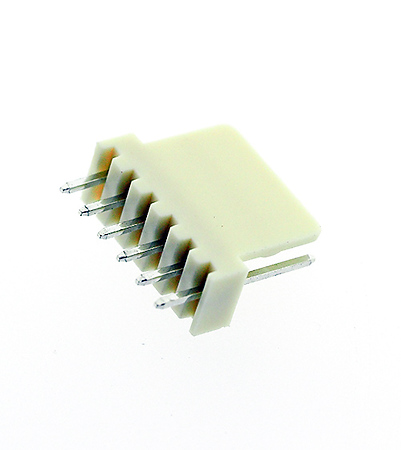

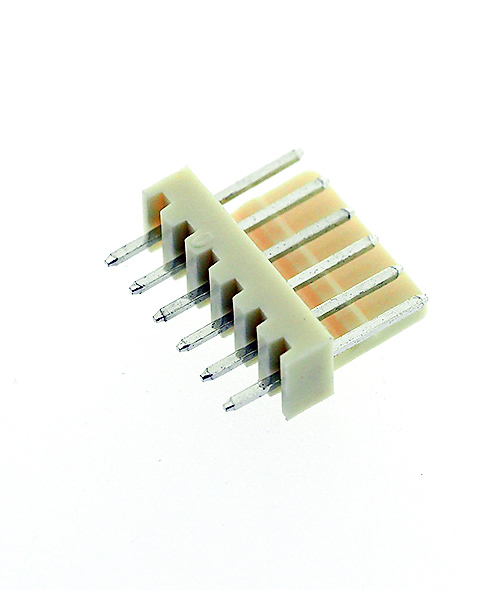

AM254 - Valcon 2.54mm Pitch Wire-to-Board Vertical PCB Mount Connector (AM25S)

From: £0.02

Through board straight type
Tin plated Brass contacts
3 Amps per contact
RoHS Compliant
MOQ & multiples may apply

Part No.	Stock Qty	1+	100+	500+	1000+	Qty
AM254-10S-010	2714 in stock	£0.16	£0.14	£0.11	£0.09	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Material: Tin Plated Brass

Rated Current: 3A DWV - AC250V

Insulation Resistance: 1000 MΩ Min.

Withstanding Resistance: 1000V AC/Minute

Operating Temperature: -25°C to +85°C

Soldering Time: 3±0.5 seconds

Solder Temperature: 235°C±5°C Min. 95% of immersed area

Resistance to Solder Heat: Time 5±0.5 seconds @ temp 235°C±5°C Max.

Mates with: Valcon AM254-xxH Series Housings

Valcon AM254 series vertical (straight) PCB mount headers, mate with assembled AM254 series housing and crimps. with latching back for robust connection retention.
