SEAF SEARAY™ Fixture Tool – High-Density Array Connector Alignment

SEAF SEARAY™ Fixture Tool – High-Density Array Connector Alignment (SEAFT)

From: £122.729

Ensures precise alignment of SEAF-RA Right Angle Sockets
Reduces solder defects and improves PCB assembly efficiency
Recommended for 8 and 10 row configurations
Reusable tool for multiple production cycles
Maintains co-planarity through reflow soldering
Ideal for high-density, high-reliability PCB applications

Part No.	Stock Qty	Price Breaks				Qty
CAT-SEAF-20-01-RA 3D CAD	Standard delivery 35 - 37 working days *	1+: £149.03	10+: £144.89	25+: £137.26	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
CAT-SEAF-40-01-RA 3D CAD	Standard delivery 8 - 10 working days *	1+: £149.03	10+: £144.89	25+: £137.26	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
CAT-SEAF-50-01-RA 3D CAD	Standard delivery 8 - 10 working days *	1+: £222.90	10+: £216.71	25+: £205.31	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

Qty.	Unit Price	Ext. Price

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Compatibility: SEAF-RA Series Right Angle Sockets

Material: High-durability, heat-resistant composite

Reusable: Yes, designed for multiple production cycles

Optimized for: High-density PCB designs with 8 and 10 row configurations

Function: Maintains co-planarity during reflow soldering

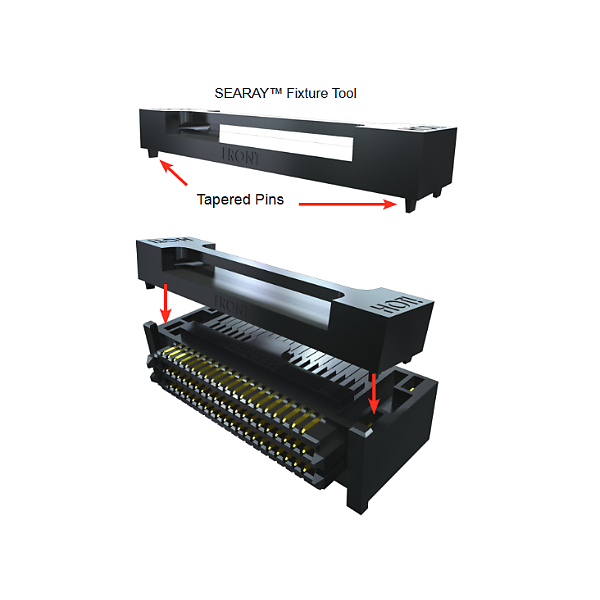

Samtec SEARAY™ Right Angle connectors (SEAF-RA Series) require precise alignment during the reflow soldering process. The SEAF Fixture Tool ensures accurate positioning, preventing misalignment and enhancing the overall reliability of the assembly.

Although not mandatory for all applications, Samtec strongly recommends the use of this tool for 8 and 10 row versions of SEARAY™ connectors. Each SEARAY™ connector utilizes a specific Fixture Tool based on the number of positions and rows.
