TSW - Samtec 2.54mm Pin Header, 23.62mm Overall Pin Length 15.24mm Tail (11) - Fast Stock (TSW11)

Copied to clipboard

>> FAST STOCK PRODUCT >>

We can cut-to-size from 02 to 50 pins per row for Fast Stock delivery - Click here now!

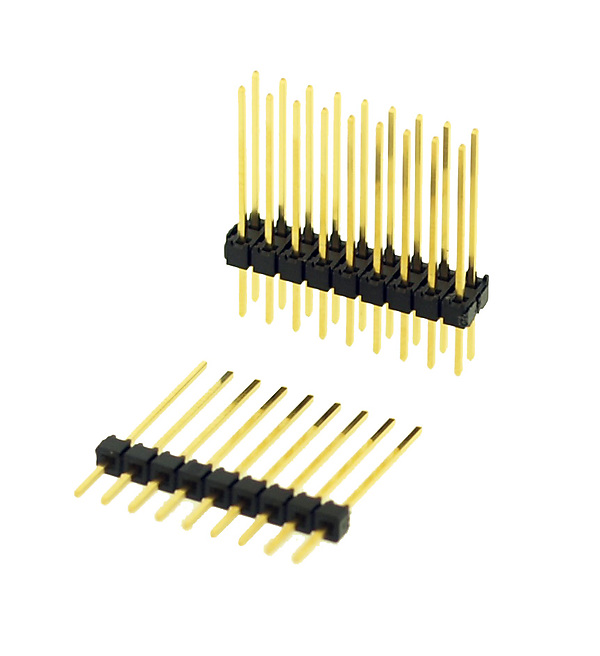

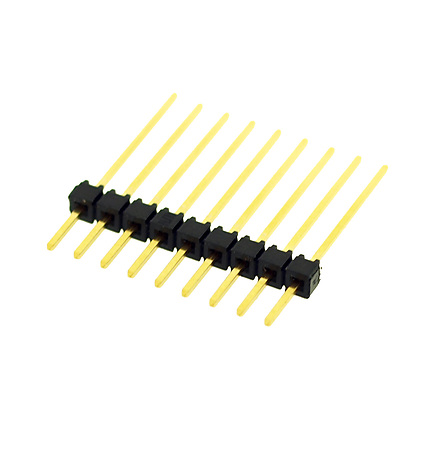

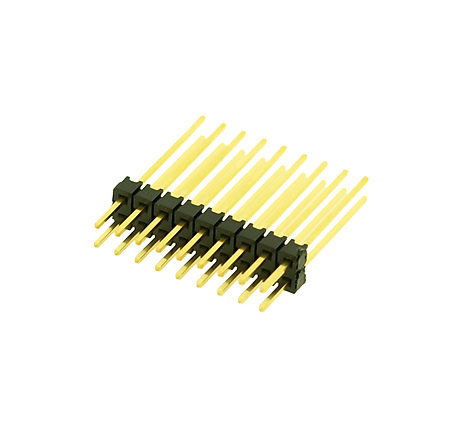

  • 2.54mm pitch single and dual row through hole PCB footprint
  • Standard 0.64mm square pins
  • Standard vertical PCB mounting, 2.54mm insulator profile
  • 23.62mm overall pin length, 5.84mm contact post, 15.24mm solder tail
Part No. Stock Qty Price Qty
TSW-102-11-G-S   3D CAD
1x2 positions
25 in stock Contact Us
You have ordered more than we have in stock, Standard delivery 2 - 4 working days
TSW-104-11-G-S   3D CAD
1x4 positions
12 in stock Contact Us
You have ordered more than we have in stock, Standard delivery 2 - 4 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: Black Glass Filled Polyester

Terminal Material: Phosphor Bronze

Plating: Au or Sn over 50µ" (1.27µm) Ni

Operating Temp Range: -55 °C to +125 °C with Gold -55 °C to +105 °C with Tin

Voltage Rating: 550 VAC mated with SSW; 500 VAC mated with BCS or ESQ; 450 VAC -RA/-RE mated with BCS or SSM 400 VAC mated with CES

RoHS Compliant

Lead–Free Solderable: Lead Wave Only

Toby can cut-to-size your requirement from 2 pins to 48 pins per row, turning a zero stock into next day delivery Contact Toby now to cut your FAST STOCK requirement.

This through-hole .025” square post terminal strip features single, double and triple row options with straight or right-angle pins in a variety of post heights and body positions. This connector is an Extended Life Product™, passing 10 year Mixed Flowing Gas (MFG) and achieving high mating cycles (250 to 2,500).
