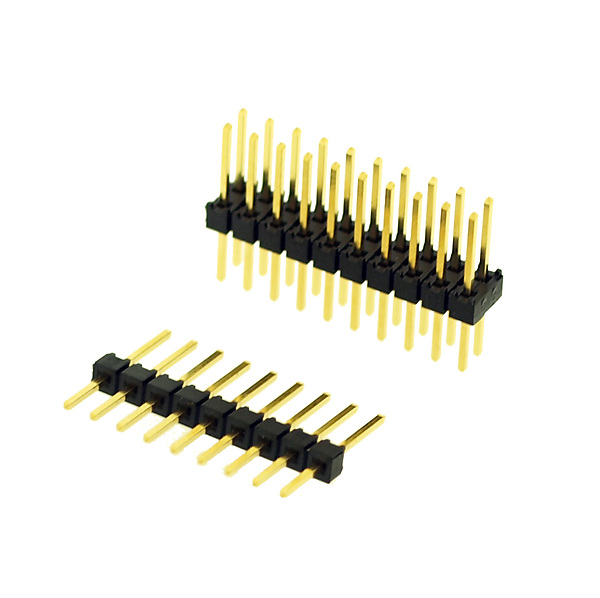

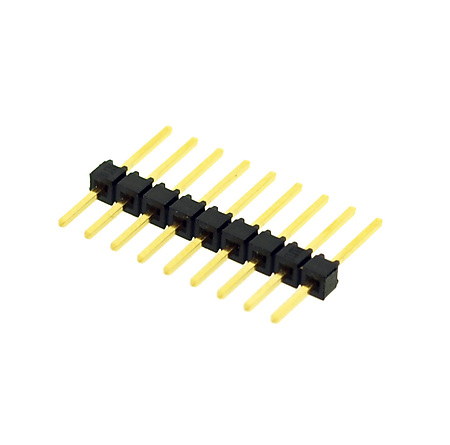

TSW - Samtec 2.54mm Pin Header, 16mm Overall Pin Length 7.62mm Tail (22) - Fast Stock(mcv)

TSW - Samtec 2.54mm Pin Header, 16mm Overall Pin Length 7.62mm Tail (22) - Fast Stock(mcv) (TSW22)

From: £0.039

>> FAST STOCK PRODUCT >>

We can cut-to-size from 02 to 50 pins per row for Fast Stock delivery - Click here now!

2.54mm pitch single and dual row through hole PCB footprint
Standard 0.64mm square pins
Standard vertical PCB mounting, 2.54mm insulator profile
16mm overall pin length, 5.84mm contact post, 7.62mm solder tail
No. of contacts 01 to 50 pins per row

Part No.	Stock Qty	Price Breaks				Qty
TSW-102-22-G-S 3D CAD 1x2 positions	125 in stock	1+: £0.15	50+: £0.14	100+: £0.14	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
TSW-102-22-T-S 3D CAD 1x2 positions	250 in stock	1+: £0.08	50+: £0.08	100+: £0.07	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
TSW-105-22-G-D 3D CAD 2x5 positions	12 in stock	1+: £0.74	50+: £0.72	100+: £0.68	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
TSW-120-22-G-D 3D CAD 2x20 positions	20 in stock	1+: £2.96	25+: £2.88	50+: £2.73	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
TSW-130-22-G-D 3D CAD 2x30 positions	Standard delivery 2 - 4 working days *	1+: £4.45	25+: £4.32	50+: £4.09	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
TSW-136-22-T-D 3D CAD 2x36 positions	Standard delivery 2 - 4 working days *	1+: £2.21	25+: £2.14	50+: £2.03	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
TSW-150-22-G-D 3D CAD 2x50 positions	5 in stock	1+: £5.92	10+: £5.76	25+: £5.45	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
TSW-150-22-G-S 3D CAD 1x50 positions	20 in stock	1+: £2.96	25+: £2.88	50+: £2.73	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
TSW-150-22-T-S 3D CAD 1x50 positions	10 in stock	1+: £1.22	50+: £1.19	100+: £1.13	View all prices	When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

Qty.	Unit Price	Ext. Price

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Insulator Material: Black Glass Filled Polyester

Terminal Material: Phosphor Bronze

Plating: Au or Sn over 50µ" (1.27µm) Ni

Operating Temp Range: -55 °C to +125 °C with Gold -55 °C to +105 °C with Tin

Voltage Rating: 550 VAC mated with SSW; 500 VAC mated with BCS or ESQ; 450 VAC -RA/-RE mated with BCS or SSM 400 VAC mated with CES

RoHS Compliant

Lead–Free Solderable: Lead Wave Only

Toby can cut-to-size your requirement from 2 pins to 48 pins per row, turning a zero stock into next day delivery Contact Toby now to cut your FAST STOCK requirement.

This through-hole .025” square post terminal strip features single, double and triple row options with straight or right-angle pins in a variety of post heights and body positions. This connector is an Extended Life Product™, passing 10 year Mixed Flowing Gas (MFG) and achieving high mating cycles (250 to 2,500).
