MTSW-08-S-RE

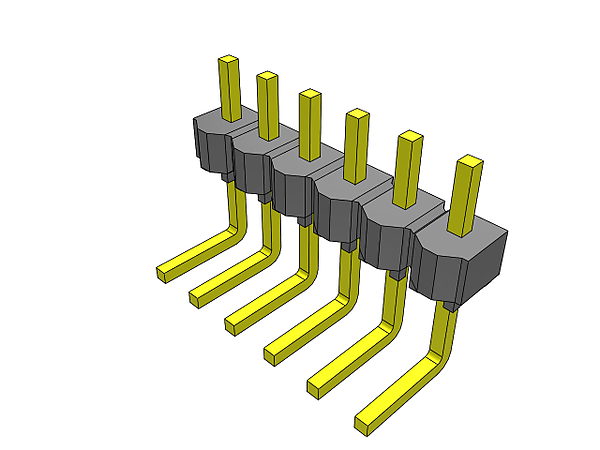

MTSW - Samtec 2.54mm Extended Right Angle Variable Post Height Header, 08 Lead Style - Fast Stock (MT08E)

From: £0.058
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can cut-to-size from 01 to 50 pins per row for Fast Stock delivery >> Click here now!

  • 2.54mm pitch through hole PCB footprint
  • Modified 0.635mm strips permit custom post heights
  • Single row option only
  • MTSW series offers the greatest stacking flexibility in the industry
  • Contact Toby with your requirement
Part No. Stock Qty Price Breaks Qty
MTSW-102-08-L-S-100-RE   3D CAD
1x2 positions - Right angle
Standard delivery
2 - 4 working days *
1+: £0.1450+: £0.14100+: £0.12 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
MTSW-116-08-F-D-150-RA   3D CAD
Standard delivery
2 - 4 working days *
1+: £2.0350+: £1.95100+: £1.69 View all prices
When ordering more than in stock, please contact us to confirm delivery time.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • Video
  • More Info

Insulator Material: Black Glass Filled Polyester

Terminal Material: Phosphor Bronze

Plating: Au or Sn over 50µ" (1.27µm) Ni

Operating Temp Range: -55 °C to +125 °C with Gold -55 °C to +105 °C with Tin

RoHS Compliant

Lead–Free Solderable: Wave Only

Toby can cut-to-size your requirement from 1 pins to 50 pins per row, turning zero stock into next day delivery Contact Toby now to cut your FAST STOCK requirement.

Modified 6.35mm strips permit custom post heights. Samtec offers the greatest stacking flexibility in the industry. The “M” stands for Modified. You tell us the post height you need and we’ll deliver it.
