SQT - 2.00 mm FleXYZâ„¢ Cost-effective Tiger Buyâ„¢ Square Tail Socket Strip
SQT - 2.00 mm FleXYZâ„¢ Cost-effective Tiger Buyâ„¢ Square Tail Socket Strip
SQT-108-01-F-S
SQT-108-01-F-T
SQT-108-01-F-Q

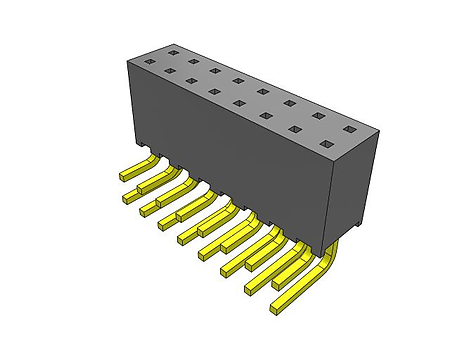

SQT - Samtec 2mm Pitch Cost Effective Square Tail Socket Strip (SQT)

From: £0.132
Copied to clipboard
  • One to six rows with 50 pins per row for 300 I/Os
  • Rugged Tiger Buy™ contact system
  • Vertical, right-angle orientation
  • 2.00mm (.0787”) pitch
  • Through-hole PCB termination
  • FleXYZ™ design allows design flexibility in all three axes
Part No. Stock Qty Price Breaks Qty
SQT-122-01-L-D  3D CAD
Dual row
Standard delivery
2 - 4 working days *
1+: £5.5110+: £5.3625+: £5.07 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: Black Liquid Crystal Polymer

Contact Material: Phosphor Bronze

Plating: Sn or Au over 50µ" (1,27µm) Ni

Current Rating (TMMH/SQT): 5.1 A per pin (1 pin powered per row)

Voltage Rating: 450 VAC mated with TMM or TMMH

Operating Temp Range: -55°C to +125°C

Contact Resistance: 10mΩ

Insertion Depth: (2,62mm) .103" to (5,03mm) .198"

Insertion Force: (Single contact only) 4 oz (1,11 N) average Normal Force: 60 grams (0,59 N) average

Withdrawal Force: (Single contact only) 3 oz (0,83 N) average

Max Cycles: 100 with 10µ" (0,25µm) Au

RoHS Compliant

Lead–Free Solderable:

Cost effective rugged PCB sockets in 2.00mm pitch; The SQT series offers cost-effective PCB sockets for through-hole termination. Available from single row up to 6 rows, this flexible range of sockets uses the proven Tiger Buy™ contact.
