ESQT Single row

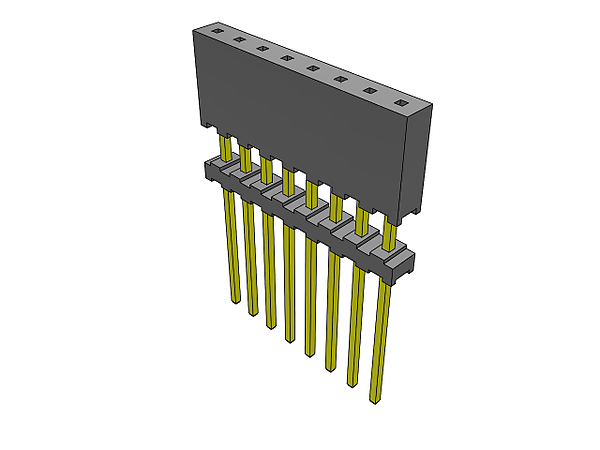

ESQT - Samtec 2mm Flexible Elevated Single Row Socket Strip (ESQT)

From: £0.104
Copied to clipboard
  • 2mm pitch through hole PCB footprint
  • Samtec Tiger Buy™ contact system
  • Orientation: Vertical
  • FleXYZ™ design allows design flexibility in all three axes to six rows with 50 pins per row
  • PC/104-Plus™ compliant
Data sheet Technical Specification Related Products Product Configurator
Part No. Stock Qty Price Breaks Qty
ESQT-102-02-F-S-515   3D CAD
Standard delivery
6 - 8 working days * 		1+: £0.4750+: £0.46100+: £0.43 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-102-03-F-S-370   3D CAD
Standard delivery
3 - 5 working days * 		1+: £0.4550+: £0.44100+: £0.42 View all prices
You have ordered more than we have in stock, Standard delivery 3 - 5 working days
ESQT-104-02-F-S-570   3D CAD
Standard delivery
6 - 8 working days * 		1+: £0.6550+: £0.64100+: £0.60 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-104-02-G-S-455   3D CAD
Standard delivery
6 - 8 working days * 		1+: £1.3250+: £1.30100+: £1.23 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-104-03-F-S-315   3D CAD
Standard delivery
6 - 8 working days * 		1+: £0.6350+: £0.62100+: £0.59 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-104-03-M-S-374   3D CAD
Standard delivery
6 - 8 working days * 		1+: £1.0150+: £0.99100+: £0.94 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-106-02-F-S-515   3D CAD
Standard delivery
6 - 8 working days * 		1+: £0.8450+: £0.83100+: £0.78 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-106-02-F-S-570   3D CAD
Standard delivery
6 - 8 working days * 		1+: £0.8450+: £0.83100+: £0.78 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-106-02-F-S-732   3D CAD
Standard delivery
6 - 8 working days * 		1+: £0.8450+: £0.83100+: £0.78 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-106-02-GF-S-350   3D CAD
Standard delivery
6 - 8 working days * 		1+: £1.4150+: £1.39100+: £1.32 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-108-02-G-S-330   3D CAD
Standard delivery
6 - 8 working days * 		1+: £1.9725+: £1.9450+: £1.83 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-108-02-G-S-750   3D CAD
Standard delivery
6 - 8 working days * 		1+: £1.9725+: £1.9450+: £1.83 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-108-02-L-S-410   3D CAD
Standard delivery
6 - 8 working days * 		1+: £1.2350+: £1.21100+: £1.15 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-108-03-F-S-408   3D CAD
Standard delivery
6 - 8 working days * 		1+: £0.9550+: £0.93100+: £0.88 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-109-02-L-S-410   3D CAD
Standard delivery
6 - 8 working days * 		1+: £1.3850+: £1.36100+: £1.29 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-112-02-F-S-645   3D CAD
Standard delivery
6 - 8 working days * 		1+: £1.4050+: £1.38100+: £1.30 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-116-02-GF-S-680   3D CAD
Standard delivery
6 - 8 working days * 		1+: £3.1425+: £3.0950+: £2.93 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-116-03-F-S-310   3D CAD
Standard delivery
6 - 8 working days * 		1+: £1.8250+: £1.79100+: £1.69 View all prices
You have ordered more than we have in stock, Standard delivery 6 - 8 working days
ESQT-116-03-L-S-374   3D CAD
Standard delivery
7 - 9 working days * 		1+: £2.2725+: £2.2350+: £2.11 View all prices
You have ordered more than we have in stock, Standard delivery 7 - 9 working days
ESQT-118-02-G-S-676   3D CAD
Standard delivery
7 - 9 working days * 		1+: £4.2010+: £4.1425+: £3.92 View all prices
You have ordered more than we have in stock, Standard delivery 7 - 9 working days
ESQT-140-02-G-D-760   3D CAD
Standard delivery
10 - 12 working days * 		1+: £15.8410+: £15.6325+: £14.78 View all prices
You have ordered more than we have in stock, Standard delivery 10 - 12 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator Material: Black Liquid Crystal Polymer

Contact Material: Phosphor Bronze

Plating: Sn or Au over 50µ" (1,27µm) Ni

Current Rating (ESQT/TMMH): 4.5A per pin (1 pin powered per row)

Operating Temp Range: -55°C to +125°C

Contact Resistance: 10mΩ

Insertion Depth: (2,62mm) .103" to (5,03mm) .198" with (0,38mm) .015" wipe

Max Cycles: 100 with 10µ" (0,25µm) Au

Insertion Force: (Single contact only) 4 oz (1,11 N) avg.

Withdrawal Force: (Single contact only) 3 oz (0,83 N) avg.

RoHS Compliant

Lead–Free Solderable: for -S, -D & -Q (Wave only for -T, -5 & -6)
