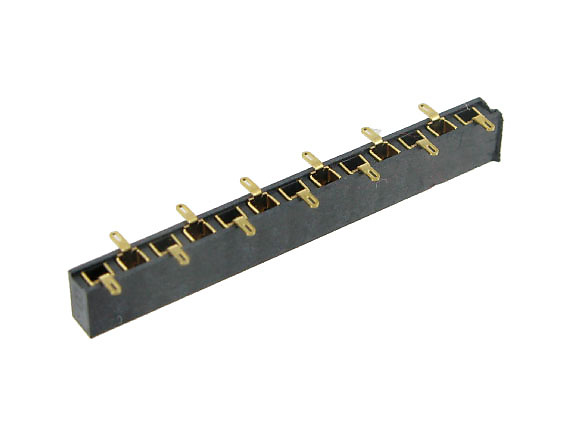

B13f - Valcon 2mm Pitch Single Row Surface Mount Socket Strip

B13f - Valcon 2mm Pitch Single Row Surface Mount Socket Strip (B13F)

From: £0.52

2mm pitch single row surface mount
Staggered PCB footprint
Choice of PIN 1 position
3.3mm body profile
1.25mm Min. mating depth

Part No.	Stock Qty	1+	100+	500+	1000+	Qty
B13f-1x10-BGBB1G 10 Pos. Pin 1 = Type B	Standard delivery 15 - 17 working days *	£0.97	£0.97	£0.80	£0.64	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
B13f-1x13-BGBB1G 13 Pos. Pin 1 = Type B	Standard delivery 15 - 17 working days *	£1.16	£1.16	£0.97	£0.77	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
B13f-1x3-BGBA1G 3 Pos. Pin 1 = Type A	Standard delivery 35 - 37 working days *	£0.52	£0.52	£0.52	£0.52	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
B13f-1x4-BGBA1G 4 Pos. Pin 1 = Type A	Standard delivery 35 - 37 working days *	£0.52	£0.52	£0.52	£0.52	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
B13f-1x4-BGBB1G 4 Pos. Pin 1 = Type B	Standard delivery 35 - 37 working days *	£0.52	£0.52	£0.52	£0.52	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
B13f-1x6-BGBA1G 6 Pos. Pin 1 = Type A	Standard delivery 35 - 37 working days *	£0.55	£0.55	£0.55	£0.55	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
B13f-1x6-BGBB1G 6 Pos. Pin 1 = Type B	72 in stock	£0.92	£0.84	£0.69	£0.56	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Material

Contact Material: Phosphor Bronze

Contact Plating: Gold Flash Plated

Body: Black, LCP Glass Reinforced, UL94V-0 Rated

Electrical

Rated Current: 1Amp

DWV - AC500V (1 minute)

Insulation Resistance: 3000 MΩ Max.

Contact Resistance: 30 mΩ min.

Operating Temperature: -40°C to +105°C

RoHS compliant

Valcon B13f Series 2mm pitch single row surface mount socket with staggered PCB footprint, 3.3mm PCB profile with Gold flash plated contacts as standard. A choice of pin 1 position and pick and place caps, plus tape and reel packaging options available.
