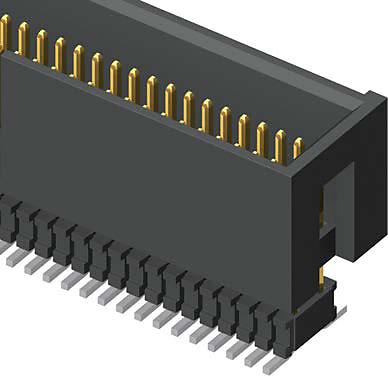

ZML - Samtec 1.27mm x 2.54mm Micro Elevated Shrouded Terminal Strip / Header (ZML)

From: £2.07
  • 1.27mm x 2.54mm pitch dual row stacker
  • Elevated double row design up to 80 pins
  • Surface mount or through-hole PCB tails
  • 0.46mm square shrouded terminals
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
ZML-108-03-S-D  3D CAD
Standard delivery
7 - 9 working days *
£3.31£3.29£2.575£2.07
ZML-125-02-S-D  3D CAD
Standard delivery
7 - 9 working days *
£7.31£7.29£5.68£4.55

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator Material: Black LCP

Terminal Material: Phosphor Bronze

Plating: Au or Sn over 50µ" (1,27µm) Ni

Operating Temp Range: -55°C to +105°C with Tin; -55°C to +125°C with Gold

RoHS Compliant

Lead-Free Solderable
