Valcon

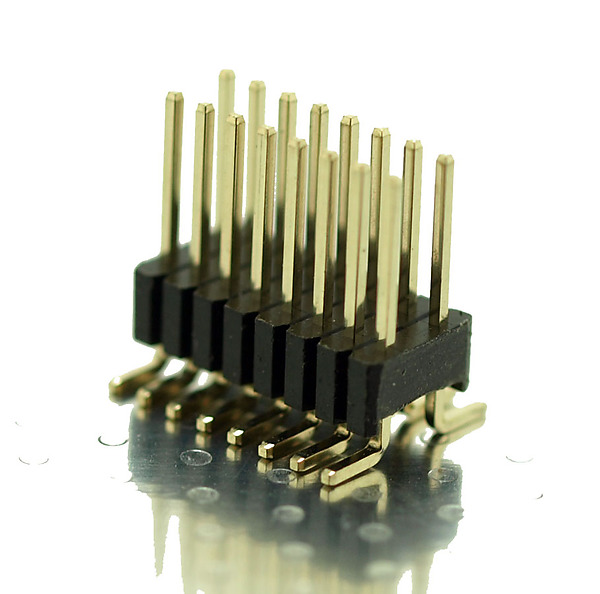

SPR2 - Valcon 1.27mm x 2.54mm Surface Mount Header (SPR2)

From: £0.77
  • 1.27mm x 2.54 mm cross pitch dual row PCB footprint
  • 2.5mm insulator profile
  • No. of contacts 02 to 50 pins per row
  • Gold flash plated pins
  • Custom pin lengths available, contact sales@toby.co.uk
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
SPR2-16-G-058-097
Standard delivery
15 - 17 working days *
£1.38£1.15£0.92£0.77

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Contact Material: Brass Contact

Plating: Gold Flash Plated

Body: GFP UL94V-0 Rated Black

Rated Current: 1A -

DWV - AC500V

Insulation Resistance: 5000 MΩ

Max. Operating Temperature: -40°C to +105°C

RoHS compliant
