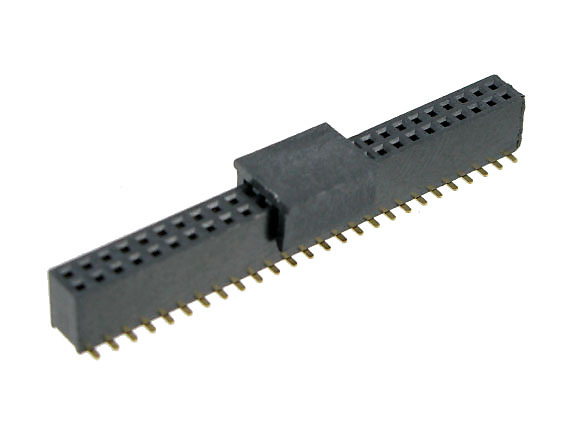

B28 - Valcon 1.27mm Surface Mount Dual Row Socket Strip, 4.3mm Profile (B28)

From: £0.48
  • 4.3mm PCB profile
  • Up to 100 pins (50 per row)
  • Gold flash contact plating as standard
  • Plastic or metal locating peg
  • Pick & place pad and tape and reel option
  • Contact sales@toby.co.uk for mating series information
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
B28-2x10-BGCAB1-G
2x10 Positions - 38 per pack
42 in stock £1.28£1.07£0.85£0.71
B28-2x20-BGCAB1-G
2x20 Positions
46 in stock £1.84£1.53£1.23£0.97
B28-2x25-BGABB1-G
2x25 Positions
629 in stock £2.59£2.16£1.73£1.44
B28-2x25-BGBAB1-G
2x25 Positions
500 in stock £2.47£2.06£1.65£1.37
B28-2x30-BGCAB1-G
2x30 Positions
468 in stock £2.87£2.39£1.92£1.60
B28-2x30-BGCBB1-G
2x30 Positions
495 in stock £3.16£2.64£2.11£1.76
B28-2x5-BGAAB1-G
2x5 Positions
338 in stock £0.92£0.77£0.61£0.51
B28-2x5-BGCAB1-G
2x5 Positions
485 in stock £0.86£0.72£0.58£0.48
B28-2x50-BGCBB1-G
2x50 Positions
130 in stock £4.89£4.07£3.26£2.71

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator : LCP, glass reinforced, rated UL 94V-0

Contact : Phosphor Bronze

Current Rating : 0.5 Amp

Contact Resistance : 30 mΩ max.

Insulation Resistance : 1000 MΩ min.

Dielectric Withstanding Voltage : 250V AC

Operating Temperature : -40°C to +105°C

RoHS compliant
