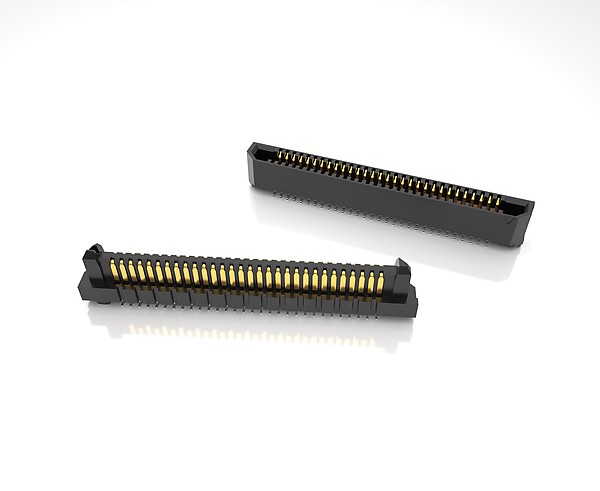

ERF6 Samtec 0.635mm Edge Rate® Rugged High Speed Socket
ERF6-60-03.5-L-DV-A-K-TR

ERF6 Samtec 0.635mm Edge Rate® Rugged High Speed Socket (ERF6)

From: £1.559

Slim 2.5mm body width
2-row design; 10 - 60 positions per row (20 - 120 total positions)
Edge Rate® contact system optimized for signal integrity performance
Supports 56 Gbps PAM4 (28 Gbps NRZ) applications
0.90mm contact wipe
Passed 10 year Mixed Flowing Gas (MFG) testing.
5mm stack height
J lead for standard processing

Part No.	Stock Qty	Price Breaks					Qty
ERF6-60-03.5-L-DV-A-K-TR 3D CAD	Standard delivery 0 - 2 working days *	1+: £6.23	10+: £6.06	25+: £5.74	View all prices		When ordering more than in stock, please contact us to confirm delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

Qty.	Unit Price	Ext. Price

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

« Back to Product Series Listing

Technical Specification
Video
More Info

ERM6 / ERF6

Pitch: 0.635mm

Insulator Material: Black LCP

Terminal Material: Copper Alloy

Palting: Au or Sn over 50 µ" (1.27 µm) Ni

Operating Temp: -55 °C to +125 °C

Current Rating: 1.4 A

Voltage Rating: 155 VAC

Lead Free Solderable: Yes

The ERF6 is a board-mounted socket designed for use in high-speed systems. The ERF6 uses the Edge Rate® contact system which is designed for applications requiring high-mating cycles and 56Gbps PAM4 performance. The ERF6 mates with ERM6 board-mounted headers.
