| Part No. | Stock Qty | 400+ | 800+ | 1200+ | 6000+ | Qty |
|---|---|---|---|---|---|---|
|
3048-02-SFN
2 Positions |
10 in stock | £0.795 | £0.73 | £0.66 | £0.61 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
|
3048-03-SFN
3 Positions |
10 in stock | £0.85 | £0.78 | £0.71 | £0.66 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
|
3048-04-SFN
4 Positions |
10 in stock | £0.92 | £0.84 | £0.77 | £0.695 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Material: LCP
Tin-plated brass pin
Recommended PCB Thickness: .062"(1.57mm)
Current rating: 5A Max. AC/DC
Voltage rating: 250V AC(RMS) or DC
Contact resistance: 10mΩ Max.
Dielectric strength: 1500V AC/minute
Temperature rise: 30°C Max. (carry rated current load)
UL Approved Product

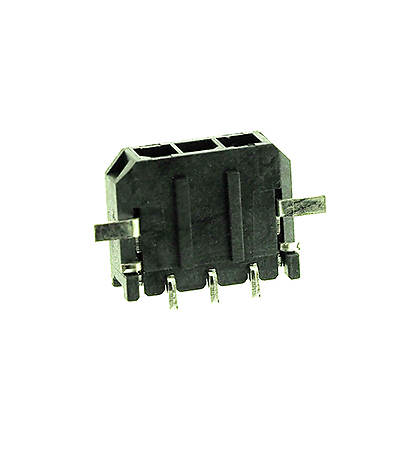

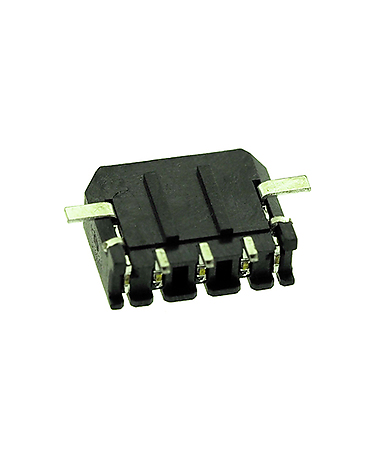

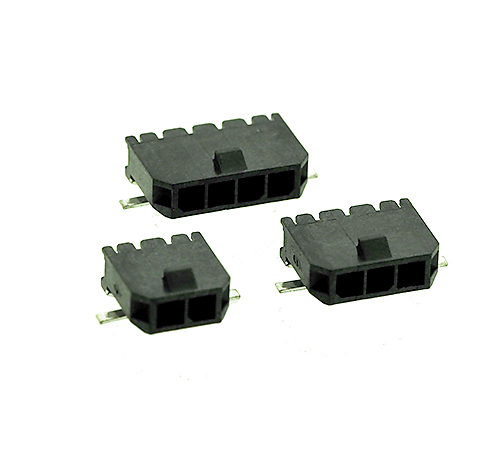

Valcon Right Angle Header, SMT at 3.00mm Pitch Spacing Single Row Wire-to-Board Connector. 3048 Series is a close alternative to Molex Micro-Fit Connector Series.
