| Part No. | Stock Qty | 100+ | 500+ | 1000+ | 5000+ | 10000+ | Qty |
|---|---|---|---|---|---|---|---|
|
3046-02S-LCP
2 Positions |
10 in stock | £0.29 | £0.26 | £0.24 | £0.22 | £0.20 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
|
3046-03S-LCP
3 Positions |
902 in stock | £0.315 | £0.28 | £0.26 | £0.235 | £0.21 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
|
3046-04S-LCP
4 Positions |
10 in stock | £0.325 | £0.29 | £0.267 | £0.245 | £0.225 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Material: LCP
Tin-plated brass pin
Recommended PCB Thickness: .062"(1.57mm)
Current rating: 5A Max. AC/DC
Voltage rating: 250V AC(RMS) or DC
Contact resistance: 10mΩ Max.
Dielectric strength: 1500V AC/minute
Temperature rise: 30°C Max. (carry rated current load)
UL Approved Product

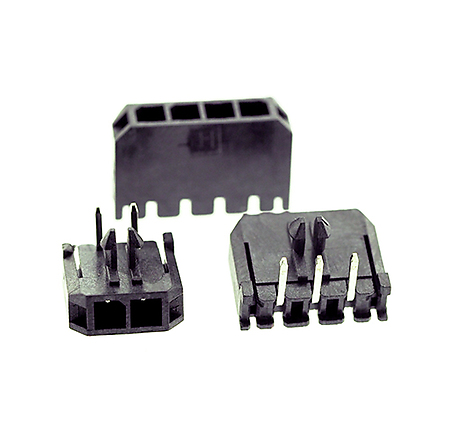

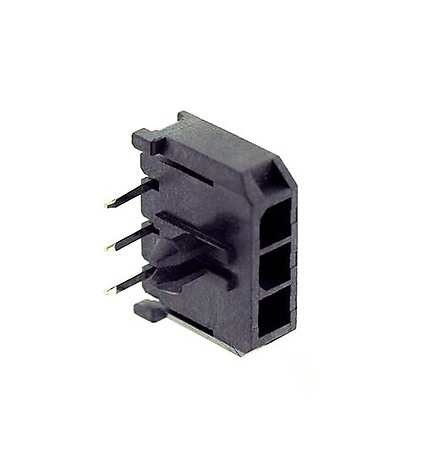

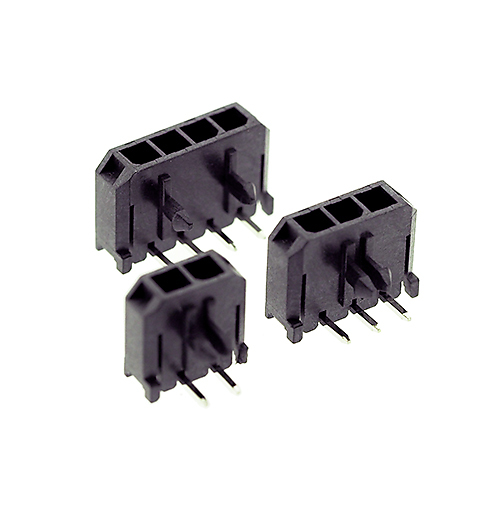

Valcon Right Angle Header, Through Hole at 3.00mm Pitch Spacing Single Row Wire-to-Board Connector. 3046 Series is a close alternative to Molex Micro-Fit Connector Series.
