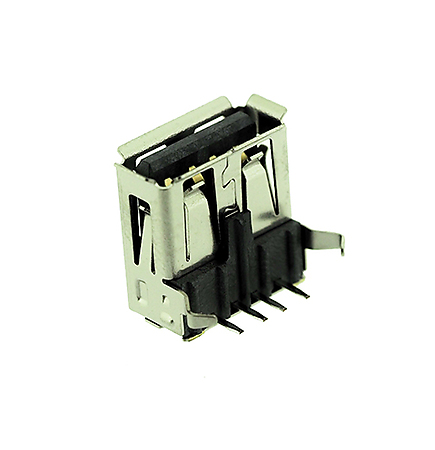

VUSB - Valcon USB Type A Single Port Socket (Ahpa) (VUSBA)

From: £0.21
Copied to clipboard
  • Through board with rear shield
  • Meets USB 1.1 specification
  • VUSB-A-1-B = Black Insulator
  • VUSB-A-1-W-R1 = White insulator
Part No. Stock Qty 10+ 120+ 600+ 1200+ Qty
VUSB-A-1-B
120pcs Per Tray
78 in stock £0.38£0.32£0.26£0.21
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
VUSB-A-1-W-R1
120pcs Per Tray
12198 in stock £0.44£0.37£0.29£0.25
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material:                             PBT+30%GF UL94V-0

Contacts:                                            Copper Alloy

Contact Plating:                               Gold flash

PCB Terminal Plating:                      Tin

Shell:                                                  Copper Alloy

Current Rating:                                  1.5A Max.

Insulation Resistance:                     1000MΩ Min. @ DC 500

Contact Resistance:                         30mΩ Max.

Voltage Rating:                                  30V AC/DC

DWV:                                                  AC 500V 1 Minute

Operating Temperature:                   -40°C to +105°C

Mating/Unmating Force:                  3.57 Kgf Max. / 1.0Kgf min. (1500 cycles

RoHS Compliant

This is an industry stand USB Type A socket for through hole PCB mounting. USB 1.1 and USB 2.0 specification. Part of Toby's low-cost Valcon range.
