Kycon

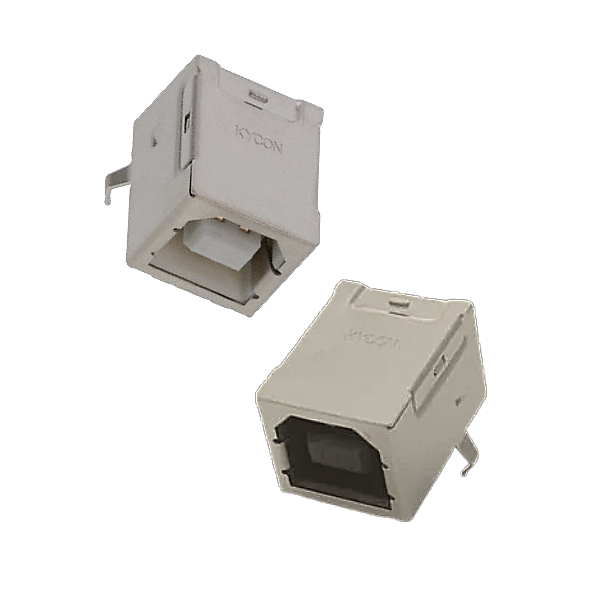

KUSBX-BS1N-x Kycon Right Angle USB Type B Single Port Socket (KUSBX)

From: £0.50
Copied to clipboard
  • USB Type B Sockets
  • Right Angle PCB Mount type
  • Black or white insert available
  • CSA and UL approved
  • Meet USB v.1.1 & USB 2.0



Request 3D model

Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
KUSBX-BS1N-B
Black Insert
1117 in stock £0.77£0.72£0.67£0.50
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
KUSBX-BS1N-B30
Black Insert - 30u" Gold
Standard delivery
12 - 14 working days *
£0.81£0.81£0.76£0.57
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
KUSBX-BS1N-W
White Insert
856 in stock £0.67£0.54£0.50Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Shell: Phosphor Bronze

Insulator: Standard: Black (-BLK) or White (-WHT)  PBT Thermoplastic, UL94V-0 Rated

SMT: Black (-B) or White (-W), High Temperature Thermoplastic, UL94V-0 Rated

Contacts: Phosphor Bronze

Contact Plating; Gold over Nickel on Contacts Tin/Lead over Nickel on Termination End

Rated Voltage: 30V AC

Contact Current Rating: 1 Amp DC Max.

Contact Resistance: 15 Milliohms Max.

Insulation Resistance: 1000 Megohms Min.

Dielectric Withstanding Voltage: 750V AC For 1 Minute

Operating Temperature: -25˚C to +80˚C

RoHS Compliant

Compatible with a huge range of computer peripherals these Kycon USB Type B connectors are a robust solution for many applications.
