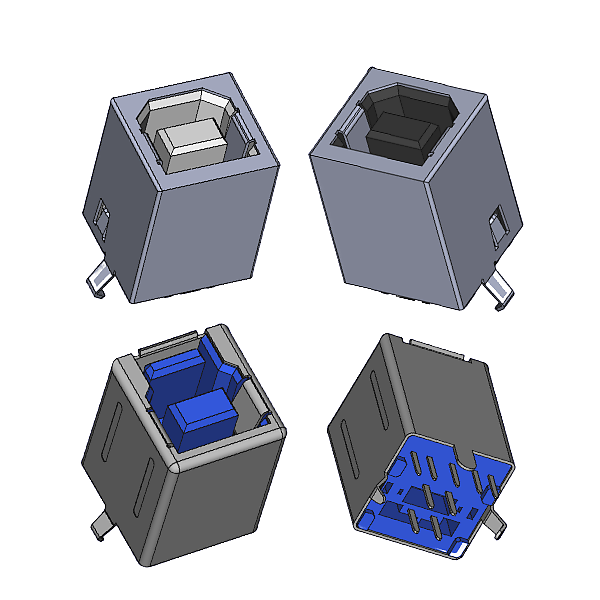

KUSBVX - Kycon USB Type B Vertical Top Entry Socket

KUSBVX - Kycon USB Type B Vertical Top Entry Socket (BVXBS)

From: £0.53

1500 Mating Cycles Min.
Vertical Top Entry
Compatible with Many Computer Peripherals A and B Types Available
Supports Hot Plugging
CSA/NRTL Cert No. LR78160 / UL File No. E134345

Part No.	Stock Qty	1+	100+	500+	1000+	5000+	Qty
KUSBVX-BS1N-B Type B - Black	Standard delivery 12 - 14 working days *	£0.72	£0.72	£0.68	£0.66	£0.53	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KUSBVX-BS1N-W Type B - White	516 in stock	£0.55	£0.55	Contact Us	Contact Us	Contact Us	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
KUSBVX-BS1N9-BL30 USB 3.2 Gen 1, Blue	Standard delivery 12 - 14 working days *	£2.19	£2.19	£1.98	£1.72	£1.57	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Insulator PBT Thermoplastic, UL 94V-0 Rated, Black or White Color

Contacts Copper Alloy

Contact Plating Gold over Nickel on Contacts, Tin over Nickel on Termination End

Shell Copper Alloy, Tin Plating ( Single) Brass, Nickel Plating ( Stacked)

Insertion Force: 3.57kg Max.

Extraction Force: 1.02kg Min.

Rated Voltage: 30V AC

Rated Current: 1A

Contact Resistance: 30 milliohms Max

Insulation Resistance: 1000 Megohms Min.

Dielectric Withstanding Voltage: 500V AC For 1 Minute

RoHS Compliant

Kycon KUSBVX Series, vertical Top Entry USB connectors are compatible with many computer peripherals. They support hot plugging and meet USB 1.1, 2.0 and 3.2 specifications.
