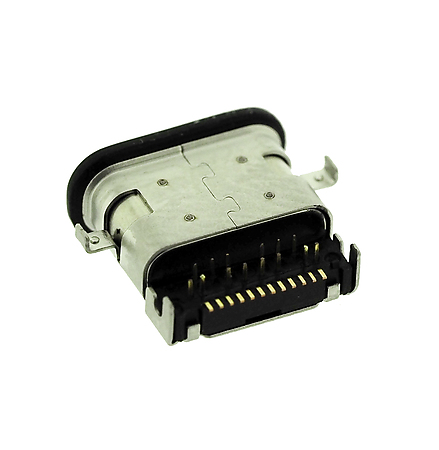

KUSB67X-MM-CS1-B15TR Kycon USB Type C IP67 Rated PCB Socket (lp) (K67MM)

From: £2.31
Copied to clipboard
  • Mid mount for reduced height
  • IP67 Rated
  • Meets USB Type C specification
  • 10,000 mating cycles
  • USB Version 3.2 Gen 2 - 10Gbps
  • Gasket included
Part No. Stock Qty 700+ 1400+ Qty
Standard delivery
8 - 10 working days *
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Housing High Temperature Thermoplastic, UL94V-0 Rated,Black Color

Shield Stainless Steel, Nickel Plated

Contact Material Copper Alloy

Contact plating Gold on Contact Area, Tin plated on Solder tails, all overNickel Underplate

Rated Current 5.0A Inclusive (1.25A Ea.)

For Pins A4, A9, B4,and B9 (VBUS), 1.25A

For Pin B5 (VCONN)6.25A Inclusive

For Pins, A1, A12, B1, and B12 (GND) and Mid Plane

0.25A For All Other Pins

Rated Voltage 30V

Insulation Resistance 100 Megohms Min. at 100V DC

Contact Resistance 40 milliohms Max.

Dielectric Withstanding Voltage 100V AC RMS for 1 Minute

Insertion Force 5N - 20N

Withdrawal Force 8N - 20N

Durability 10000 Mating Cycles Min.

Operating Temperature-40°C to +80°C

This Kycon USB Type C PCB socket has a 10Gbps data rate,USB 3.2Gen 2, can handle significantly faster data transfer than standard USB 2.0 and 3.0 products. The IP67 rating is perfect for devices that require a safeguard to harsh environments.  Kycon offers both a mid-mount option and a top mount option (hybrid contacts) to suit whatever your application requires. Parts are in tape and reel packaging, includes the gasket and are compliant with the current RoHS (3) and REACH (201) standards. The part itself is Hybrid SMT and Through Hole Leads with Through Hole Shield Tabs part.
