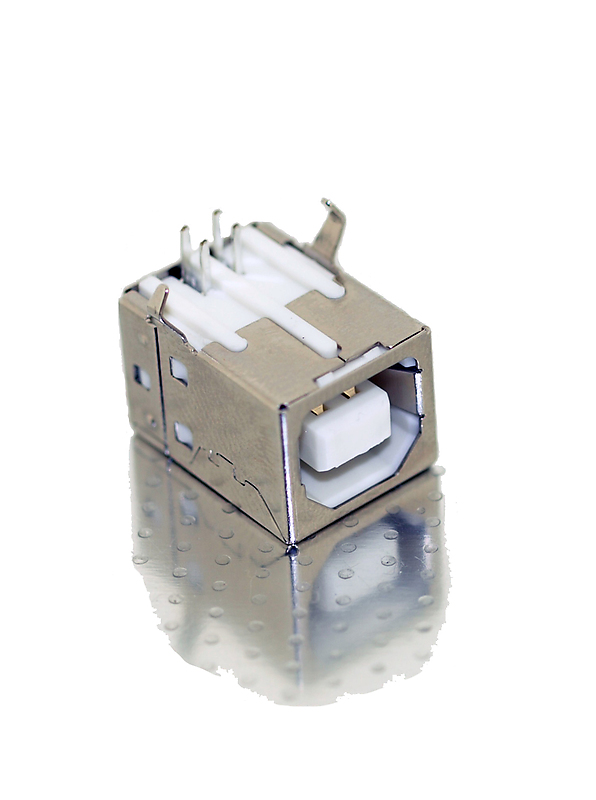

317AE - Valcon USB Type B PCB Connector (317SB)

From: £0.27
Copied to clipboard
  • Through Board PCB mount with rear shield
  • Meets USB 1.1 specification
  • RoHs Compliant
  • White Insulator
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
317AE-04PSB1001
8929 in stock £0.49£0.41£0.32£0.27
Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: PBT 9T UL94V-0 White insulator

Contact Material: Brass

Shell Material: Back:Stainless Steel Front:Brass

Contact Plating: Gold flash

Current Rating: 1A Max.

Insulation Resistance: 1000MΩ min. @ DC 500

Contact Resistance: 30mΩ Max.

DWV: AC 500V 1 minute

Operating Temperature: -40°C to +85°C

Mating/Unmating Force: 3.57 Kgf Max. / 1.0Kgf min. (1500 cycles)

Valcon USB 2.0 standard type B connector, with white insulator. Right angled PCB mount through hole mounted.
