Samtec

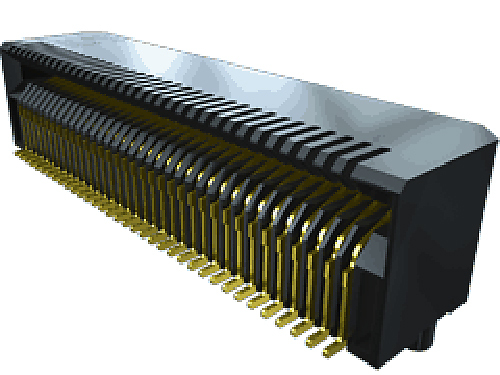

MECT - Samtec 0.80 mm SFP+ Edge Card Connector (MECT)

From: £0.762
Copied to clipboard
  • 20, 30, or 70 I/Os
  • 2x10 position for SFP, SFP+ transceivers
  • 2x10, 2x15 and 2x35 for XENPAK and XFP transceivers
  • Available individually or as a kit (SFPK Series)
  • Connectors and cage available
  • Mates with SFP, SFP+, XFP or XENPAK transceivers
  • Press-fit or through-hole solder leads on cages
Part No. Stock Qty Price Breaks Qty
MECT-110-01-M-D-RA1  3D CAD
693 in stock 1+: £1.7650+: £1.71100+: £1.62 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • Video
  • More Info

Black LCP material

Phosphor Bronze contacts

Tin or Gold plated over 100 µ" Nickel

Operating Temp -55°C to +125°C

2 A per pin Current Rating (6 pins powered)

Volatge Rating 256 VAC

SMT Lead Coplanarity (0.10mm) .004" max (10-35)

RoHS compliant product & Lead free solderable

UL E111594

Samtec Card Edge SFP+ connector. Available individually or as a kit (SFPK Series); Connectors and cage available; Mates with SFP, SFP+, XFP or XENPAK transceivers; Press-fit or through-hole options available.
