| Part No. | Stock Qty | Price Breaks | Qty | ||||
|---|---|---|---|---|---|---|---|
|

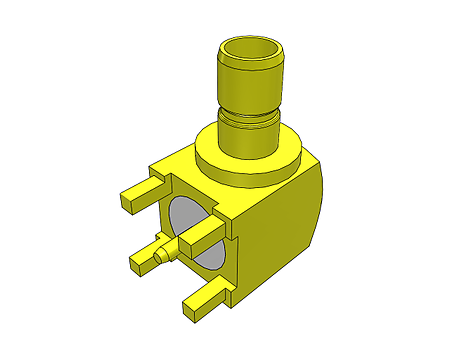

SMB7H-J-P-H-RA-TH1
3D CAD
|
Standard delivery 2 - 4 working days * |
1+: £4.82 | 25+: £4.69 | 50+: £4.44 | View all prices | ||
|
SMB7H-J-P-H-ST-TH1
3D CAD
|
Standard delivery 2 - 4 working days * |
1+: £1.99 | 50+: £1.93 | 100+: £1.83 | View all prices | ||
|
SMB7H-J-P-H-ST-TH2
3D CAD
|
Standard delivery 2 - 4 working days * |
1+: £3.21 | 50+: £3.12 | 100+: £2.96 | View all prices | ||
|
SMB7H-J-P-HN-RA-TH1
3D CAD
|
Standard delivery 5 - 7 working days * |
1+: £9.43 | 25+: £8.49 | 50+: £7.45 | View all prices | ||
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Shell Material: Brass
Contact Material: Brass
Insulator Material: PTFE
Impedance: ST = 75 W ±3 W RA = 75 W ±4 W
Frequency Range: 0~4 GHz
Working Voltage: 335 Vrms max
Dielectric Withstanding: 1000 Vrms min
Operating Temperature: -65 °C to +165 °C
RoHS Compliant: Yes
Lead–Free Solderable: Yes
75 Ohm RF solutions include industry standard cables with mix-and-match flexibility on end options: BNC, HD-BNC, DIN 1.0/2.3, or SMB. Cables include: RG 179, RG 6, Belden 1694A, or Belden 1855A. Components are available for customer-installed field terminations. Samtec has the largest variety of 12G-SDI products available for Broadcast Video applications: BNC, HD-BNC and DIN 1.0/2.3 with a variety of orientation and termination options, including low-profile right-angle.
