| Part No. | Stock Qty | Price Breaks | Qty | ||||
|---|---|---|---|---|---|---|---|
|
MMCXV-J-P-GF-ST-TH1
3D CAD
|
Standard delivery 5 - 7 working days * |
1+: £2.61 | 25+: £2.53 | 50+: £2.40 | View all prices | ||
|
MMCXV-J-P-HF-ST-TH1
3D CAD
|
Standard delivery 4 - 6 working days * |
1+: £2.89 | 25+: £2.81 | 50+: £2.66 | View all prices | ||
|
MMCXV-P-P-GF-ST-TH1
3D CAD
|
Standard delivery 30 - 32 working days * |
1+: £2.61 | 25+: £2.53 | 50+: £2.40 | View all prices | ||
|
MMCXV-P-P-HF-ST-TH1
3D CAD
|
Standard delivery 30 - 32 working days * |
Contact Us | View all prices | ||||
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Contact Material: BeCu
Insulator Material: PTFE
Pin and Shell Material: Brass
Operating Temp Range: -65°C to +125°C
Insulation Resistance: 1000MΩ min
Contact Resistance: Center: 5mΩ Outer: 2.5mΩ
Impedance: 50Ω
Dielectric Withstanding Voltage: 500 Vrms, 50Hz
Dielectric Working Voltage: 170 Vrms, 50Hz
V.S.W.R.: 1.3 max
Frequency Range: 0~6 GHz
RoHS Compliant: Yes
Lead-Free Solderable: Yes

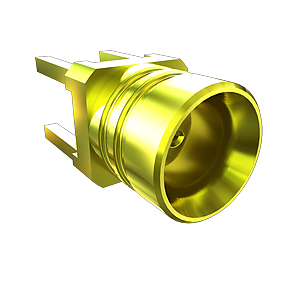

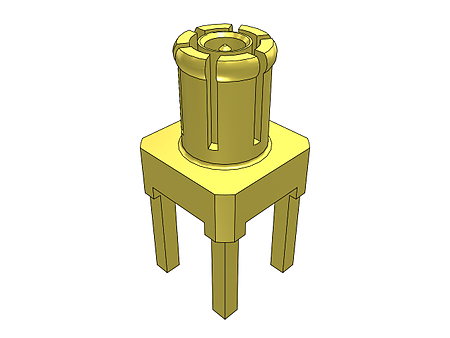

This micro miniature high vibration rugged connector provides performance up to 6 GHz with a simple snap-on coupling. Right-angle and through-hole jacks and plugs available with RG 174, RG 316 or RG 178 cable terminations.
Both jacks and plugs are designed for high-vibration environments, the jack with switchable internal/external antenna. There are non-magnetic options available for medical and aerospace applications
