Samtec 75 Ohm MMCX Jack or Plug, Through-Hole

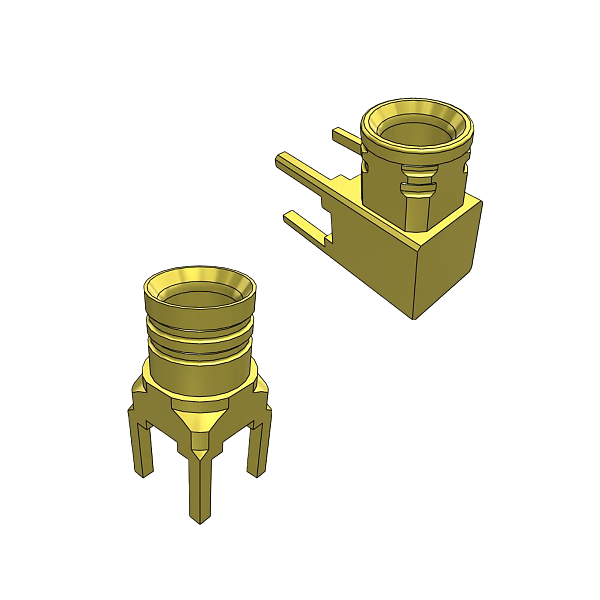

MMCX7 - Samtec 75 Ohm True75™ MMCX Jack or Plug, Through-Hole SamΩ (MMCX7)

From: £1.995
Copied to clipboard
  • Performance up to 6 GHz
  • 75 Ohm impedance
  • Vertical or right angle orientation
Part No. Stock Qty Price Breaks Qty
MMCX7-J-P-GF-RA-TH1   3D CAD
Right Angle Jack
600 in stock 1+: £6.0610+: £5.8925+: £5.58 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
MMCX7-J-P-GF-ST-TH1   3D CAD
Jack
3 in stock 1+: £3.6625+: £3.5650+: £3.37 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
MMCX7-P-P-GF-ST-TH1   3D CAD
Plug
Standard delivery
20 - 22 working days *
1+: £4.2925+: £4.1750+: £3.95 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Shell Material:  Brass (–J) BeCu (–P)

Insulator Material:  PTFE

Outer Contact Material:  BeCu

Pin Material:  Brass

Operating Temp Range:  -65 °C to +125 °C

Contact Resistance:  Center: Testing Now! Outer: Testing Now!

Frequency Range:  Testing Now! (Cable dependant)

Impedance:  75 Ω

RoHS Compliant:  Yes

Lead-Free Solderable:  Yes

75 Ohm RF solutions include industry standard cables with mix-and-match flexibility on end options: BNC, HD-BNC, DIN 1.0/2.3, or SMB. Cables include: RG 179, RG 6, Belden 1694A, or Belden 1855A. Components are available for customer-installed field terminations. Samtec has the largest variety of 12G-SDI products available for Broadcast Video applications: BNC, HD-BNC and DIN 1.0/2.3 with a variety of orientations and termination options, including low-profile right-angle.
