| Part No. | Stock Qty | Price Breaks | Qty | ||||
|---|---|---|---|---|---|---|---|
|
MCX7-J-P-H-ST-SM1
3D CAD
|
Standard delivery 3 - 5 working days * |
1+: £2.15 | 50+: £2.09 | 100+: £1.98 | View all prices | ||
|
MCX7-P-P-H-ST-SM1
3D CAD
|
Standard delivery 5 - 7 working days * |
1+: £3.81 | 25+: £3.70 | 50+: £3.51 | View all prices | ||
|
MCX7-P-P-HN-ST-SM1
3D CAD
|
Standard delivery 5 - 7 working days * |
1+: £3.49 | 25+: £3.39 | 50+: £3.21 | View all prices | ||
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Shell Material: Brass
Contact Material: BeCu
Insulator Material: PTFE
Impedance: ST = 75 W ±3 W RA = 75 W ±4 W
Frequency Range: 0~6 GHz
Working Voltage: 170 Vrms max
Dielectric Withstanding: 500 Vrms min
Engagement Force: 4.5 lbs max (–ST only)
Disengagement Force: 2.3 lbs max (–ST only)
Operating Temperature: -65 °C to +125 °C
Lead–Free Solderable: Yes

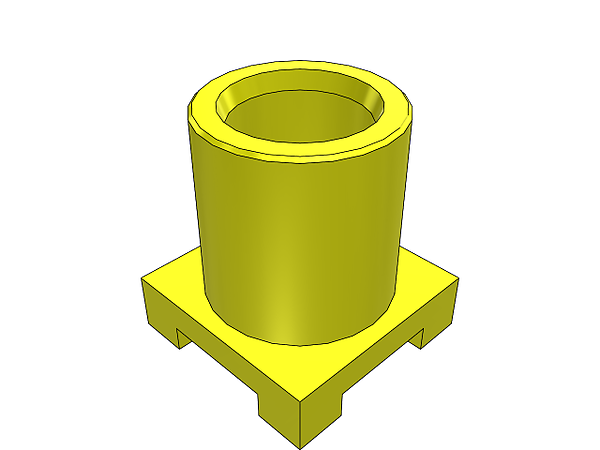

Samtec 75 Ohm mini coaxial RF interconnects featuring a space-saving design approximately 30 percent smaller than SMBs.
