MCX7-CA - Samtec 75 Ohm MCX Plug, Cable Termination (MCX7C)

From: £1.826
Copied to clipboard
  • MCX cable component
  • Straight or right-angle plug available
  • Assembled using RG179 cable
Part No. Stock Qty Price Breaks Qty
MCX7-P-C-H-RA-CA3   3D CAD

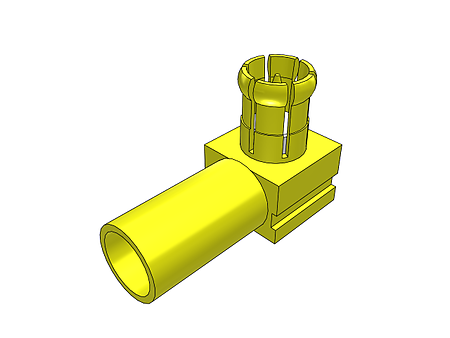

Right angle
Standard delivery
3 - 5 working days *
1+: £4.0025+: £3.8950+: £3.68 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
MCX7-P-C-H-ST-CA3   3D CAD
Straight
Standard delivery
3 - 5 working days *
1+: £3.6025+: £3.5050+: £3.32 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
MCX7-P-C-HN-RA-CA3   3D CAD
Right angle
Standard delivery
5 - 7 working days *
Contact Us View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
MCX7-P-C-HN-ST-CA3   3D CAD
Straight
Standard delivery
5 - 7 working days *
1+: £3.3325+: £3.2350+: £3.06 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Contact Material:  Brass

Finger Shell Material:  BeCu

Body Material:  Brass

Insulator Material:  PTFE

Center Contact:  Soldered

Outer Ferrule:  Crimped

Impedance:  75 W

Frequency Range:  0~6 GHz (-ST) 0~4.5 GHz (-RA)

Working Voltage:  170 Vrms max

Dielectric Withstanding:  500 Vrms min

Operating Temperature:  -65 °C to +125 °C

Samtec Mini coax interconnects featuring a space-saving design which is approximately 30 percent smaller than SMBs.

Samtec offers cable connectors with bayonet, threaded, and push-on coupling features; available for a wide variety of industry standard cables. High-frequency cable connectors are manufactured with a precise tolerance interface to ensure superior repeatability and high mechanical stability. Interface types include 1.00 mm, 1.35 mm, 1.85 mm, 2.40 mm, 2.92 mm, SMA, SMPM, SMP, MCX, MMCX, SMB, TNC, BNC, HD-BNC™, and many more
