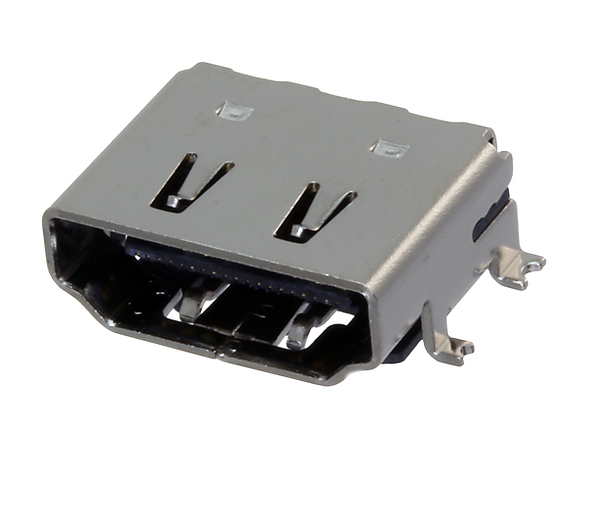

HDMR - Samtec High Speed I/O Socket (HDMR)

Copied to clipboard
  • Meets DDWG single monitor interface specifications
  • Surface mount or through-hole signal leads
  • Hot pluggable in 19 or 29 positions
  • Panel flange and locking options
Data sheet Technical Specification Product Configurator
Part No. Stock Qty Price Breaks Qty
HDMR-19-01-F-SM   3D CAD
Standard delivery
2 - 4 working days *
Contact Us View all prices
When ordering more than in stock, please contact us to confirm delivery time.
HDMR-19-01-S-SM   3D CAD
Standard delivery
2 - 4 working days *
Contact Us View all prices
When ordering more than in stock, please contact us to confirm delivery time.
HDMR-19-01-S-SM-PF   3D CAD
Standard delivery
2 - 4 working days *
Contact Us View all prices
When ordering more than in stock, please contact us to confirm delivery time.
HDMR-19-02-F-SM   3D CAD
Standard delivery
2 - 4 working days *
Contact Us View all prices
When ordering more than in stock, please contact us to confirm delivery time.
HDMR-19-02-S-SM   3D CAD
Standard delivery
2 - 4 working days *
Contact Us View all prices
When ordering more than in stock, please contact us to confirm delivery time.
HDMR-29-01-S-SM   3D CAD
Standard delivery
2 - 4 working days *
Contact Us View all prices
When ordering more than in stock, please contact us to confirm delivery time.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator Material: High Temperature Thermoplastic

Contact Material: Copper Alloy

Shell Material: Steel

Operating Temp Range: -25 °C to +85 °C

Plating: Gold on Contacts, Nickel on Shell and Tin on Tails

Current Rating: 1.3 A per pin (6 adjacent pins powered)

Voltage Rating: 40 VAC

Minimum Cycles: 100

Lead-Free Solderable: Yes

RoHS Compliant: Yes
