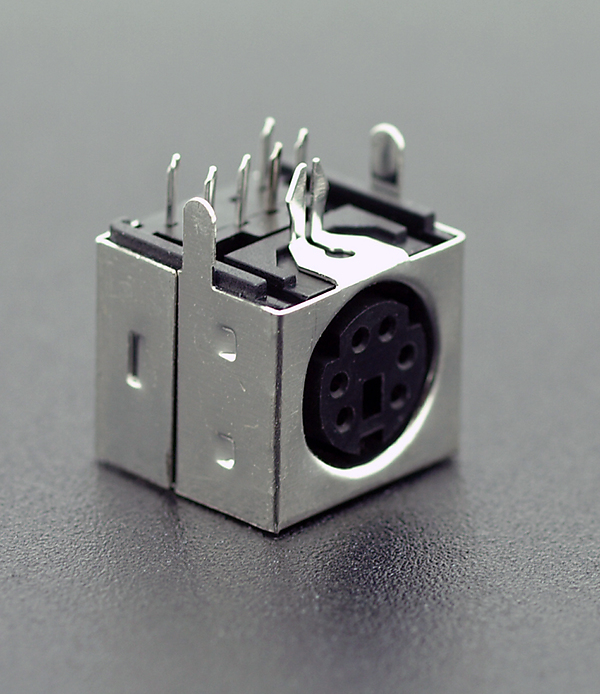

KMDLX - Kycon Snap & Lock Right Angle Mini Din, 12.8mm PCB Profile (KMDLX)

Copied to clipboard
  • 12.8mm PCB profile
  • Visual & mechanical plug polarisation
  • UL recognized (E140125) & CSA certified LR78160
  • RoHS Compliant

**Discontinued**



Click for here for alternative option >> MDC-3xx-R Series

Part No. Stock Qty Price Qty
No prices found

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Body: PBT Thermoplastic, Black Color, UL 94V-0 Rated

Contacts: Phosphor Bronze, Silver Plated

Shield: SPCC, Tin Plated

Insertion Force 4.5kg Max.

Extraction Force 0.5kg - 3.0kg

Rated Current 2A

Rated Voltage 12V DC

Insulation Resistance 50 Megohm Min. at 250V DC

Contact Resistance 30 milliohms Max.

Dielectric Withstanding Voltage 250V AC RMS For 1 Minute

Operating Temperature -40°C to + 75°C
